ABB OTP16T3M OTP16T3M Safety switch
- MPN: OTP16T3M
- UPC: 662019063515
- PPN: ABB-OTP16T3M
- UNSPSC: 39122205
CAD
$472.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

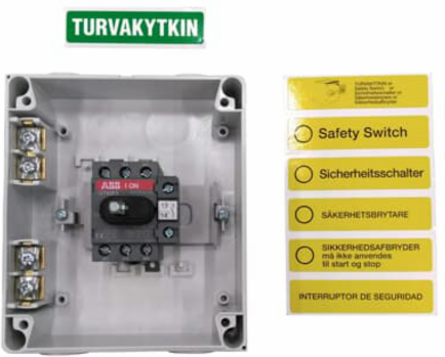

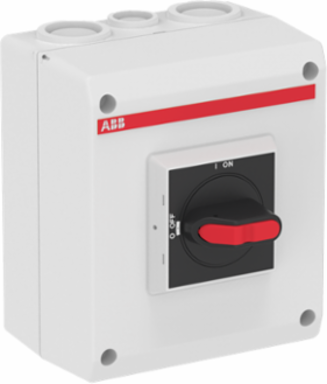

Safety switch, 3-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Specifications
Dimensions
- Product Net Width
- 130 mm
- Product Net Depth / Length
- 60 mm
Product Net Height150 mm
Product Net Weight0.453 kg
Technical
- Rated Operational Current AC-22A (Ie)
- (380 ... 415 V) 32 A(500 V) 32 A(690 V) 32 A
- Rated Operational Power AC-23A (Pe)
- (380 ... 415 V) 7.5 kW(500 V) 7.5 kW(690 V) 7.5 kW
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 750 V
- Rated Short-Circuit Making Capacity (Icm)
- (690 V AC) 0.705 kA
- Power Loss
- at Rated Operating Conditions per Pole 1.6 W
- Handle Color
- Black
- Position of Line Terminals
- Top In - Bottom Out
- Number of Poles
- 3
- Connecting Capacity Main Circuit
- Screw Clamp 0.75 ... 10 mm²Screw Clamp / PE Terminal 2pc,1.5 ... 10 mm²
- Cable Entry Position
- Top and/or Bottom
- Degree of Protection
- acc. to IEC 60529 IP65
- Enclosure Material
- Plastic
- Mounted Auxiliary Contacts
- 1 NO, 0 NC
- Number of Auxiliary Contacts NO
- 1
- Position of PE Terminals
- Top In - Bottom Out
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 16 A(500 V) 16 A(690 V) 10 A
Conventional Thermal Current (Ithe)Fully Enclosed 40 A
Rated Operational VoltageMain Circuit 750 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 0.5 kA
Pollution Degree3
Handle TypeSelector handle
StandardsIEC 60947-1, -3
Neutral TypeFixed neutral
Cable Cross-Section0.75 ... 10 mm²
Cable Outlets Per Side2xM25+M16 / 2xM25+M16
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Number of Auxiliary Contacts NC0
Position of Neutral TerminalsTop In - Bottom Out
Tightening TorqueMain Circuit 0.8 N·m
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5166 >> Safety switch
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Norway)
- 1428950
ETIM 9EC000216 - Switch disconnector (low voltage)
eClassV11.1 : 27371403
E-Number (Finland)3642253
E-Number (Sweden)3140150
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- RoHS Information
- 1SCC340075D0201
REACH Declaration1SCC340076D0201
Toxic Substances Control Act - TSCA1SCC340095D0201
Technical UL/CSA
- Tightening Torque
- Main Circuit 0.8 N·m
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Lithuania (LT)
Customs Tariff Number85363030
