Schneider Electric VLSH1S5R TeSys VLS Rotary Handle Disconnect Switch, 65x65mm, NEMA 1/4/4X, IP65
- MPN: VLSH1S5R
- PPN: SCH-VLSH1S5R
CAD
$103.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

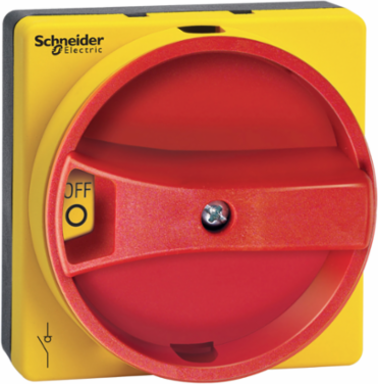

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This red rotary handle will work with any VLS3P disconnect switch. This 2.56 inch by 2.56 inch handle is mounted using four screws. 5 mm shafts are used with this handle. The front plate is yellow in color. The rotary handle will accept 1 to 3 padlocks that are 0.16 to 0.31 inch in diameter. Handle is marked 0 / OFF - 1 / ON. Handle is 2.56 inches tall, 2.56 inches wide and 1.81 inches deep. The handle weighs 0.16 lbs. This handle is NEMA 1, 4 and 4X rated and IP65 rated. This handle is cULus Listed and meets IEC 60947-3 requirements.
Features
- The Schneider Electric VLSH1S5R is engineered explicitly for the TeSys VLS series, providing a flawless mechanical fit with any VLS3P 3-pole disconnect switch ranging from 16A up to 125A. It natively accommodates a standard 5mm shaft, eliminating installation guesswork and the need for costly adapter kits during your control panel builds.
- Designed with operator safety as a priority, the high-visibility red handle and yellow front plate include a heavy-duty padlockable mechanism that accepts 1 to 3 padlocks (0.16 to 0.31-inch diameter). This allows maintenance teams to securely lock out the switch in the 0/OFF position, preventing accidental re-energization during critical equipment service.
- The low-profile, recessed design measures a compact 65x65mm (2.56 x 2.56 inches) with a shallow depth of just 46mm, making it ideal for tight spaces where protruding operators might be damaged or obstructed. This space-saving profile allows panel builders to maximize internal layout efficiency without sacrificing mechanical leverage or clear 0-1 (OFF/ON) visual marking indication.
- This robust manual motor controller handle utilizes a stable four-screw surface mounting layout with a recommended tightening torque of 2.3 N.m to provide a permanent, vibration-resistant hold. The direct-screw fixing method guarantees the actuator remains rigidly aligned with the internal switch mechanism, preventing binding or alignment drift over thousands of operations.
Documentation & Downloads
Specifications
Additional
- Tightening Torque
- 2.3 N.m (20.36 lbf.in)
- IP Degree of Protection
- IP65
- Base Dimension
- 65 x 65 mm
- Width
- 65 mm
- Net Weight
- 0.073 kg (0.16 lb)
- Handle Front Plate Colour
- Yellow
- Mounting
- by 4 screws
- Range Compatibility
- TeSys TeSys VARIO LS VLS3P
- Device Short Name
- VLSH
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of legal scope)
- Mercury Free
- Yes
- Country of Origin
- Italy
Rotary Handle Padlocking1 to 3 padlocks 4-8 mm
NEMA Degree of ProtectionNEMA 1, NEMA 4, NEMA 4X
Height65 mm
Depth46 mm
Handle ColourRed
Marking0 - 1 || OFF-ON
Product Or Component Typerotary handle
RangeTeSys
Toxic Heavy Metal FreeYes
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (out of legal scope)
Reach RegulationFree of Substances of Very High Concern above threshold
