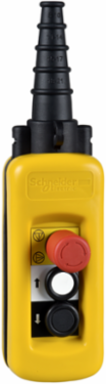

Schneider Electric XACA28141 Harmony XAC Pendant Control Station, Yellow, 2 Push Buttons, IP65, 0.635 kg
- MPN: XACA28141
- PPN: SCH-XACA28141
CAD
$416.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XACA28141 is a pendant control station with 2 push buttons and Emergency stop for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XAC
- Device Short Name
- XACA
Product Or Component Typependant control station
Complementary
- Product Certifications
- CCC || GOST
- Control Station Application
- control of single speed hoist motor
- Ambient Air Temperature For Operation
- -25-70 °C
- Terminals Description Iso N°1
- (13-14)NO || (11-12)NC
- Maximum Resistance Across Terminals
- 25 MOhm
- Cable Entry
- rubber sleeve with stepped entry 8-26 mm
- Enclosure Type
- complete ready for use
- Net Weight
- 0.635 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Control Station Type
- double insulated
- [Ui] Rated Insulation Voltage
- emergency stop contact 400 V 3)IEC 60947-1 || 600 V 3)
- Control Station Composition
- 2 push-buttons + 1 emergency stop
- Contact Operation
- slow-break
- Control Station Colour
- yellow
- Operating Force
- 13-13 N push-button || 14-14 N emergency stop
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Enclosure Material
- polypropylene
- Protective Treatment
- TH
Ik Degree Of ProtectionIK08 conforming to EN 50102
Terminal Identifier(11-12)NC || (13-14)NO
Terminals Description Iso N°2(31-32)NC || (21-22)NC || (11-12)NC
StandardsUL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60204-32 || EN/ISO 13850: 2006
Short-Circuit Protection10 A fuse protection cartridge gG
Shock Resistance100 gn IEC 60068-2-27
Vibration Resistance15 gn 10-500 Hz)IEC 60068-2-6
Product CompatibilityZB2BE102 + ZB2BE101 for each direction || XENT1192 for emergency stop
Ip Degree Of ProtectionIP65 IEC 60529
Connections - Terminalsscrew clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Ambient Air Temperature For Storage-40-70 °C
Overvoltage Categoryclass II IEC 61140
Mechanical Interlockingwith mechanical interlocking
Mechanical Durability1000000 cycles
Control Button Typefirst push-button 1 NC + 1 NO raise, slow || second push-button 1 NC + 1 NO lower, slow || emergency stop push-button Ø 30 mm 3 NC trigger action
Electrical Circuit Typecontrol circuit
Contact Code DesignationA600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Rated Operational Power In W40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP070905EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Contractual warranty
- Warranty
- 18 months
