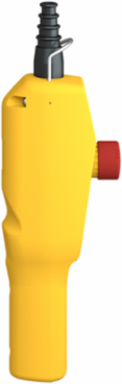

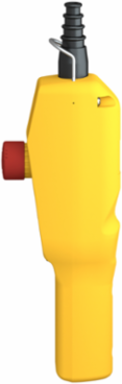

Schneider Electric XACA2113 Harmony XAC Yellow Pendant Control Station, 2 Push Buttons, IP65
- MPN: XACA2113
- PPN: SCH-XACA2113
CAD
$272.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XAC, yellow pendant station for hoist motor has single speed. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 2 push buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its ergonomic pistol grip allows single handed control of your hoist and crane. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Harmony XAC |
|---|---|
| Device Short Name | XACA pistol grip |
| Product Or Component Type | pendant control station |
|---|
Complementary
| Product Certifications | UL || CSA |
|---|---|
| Control Station Application | control of single speed hoist motor |
| Ambient Air Temperature For Operation | -25-70 °C |
| Terminals Description Iso N°1 | (13-14)NO |
| Maximum Resistance Across Terminals | 25 MOhm |
| Cable Entry | rubber sleeve with stepped entry 7-15 mm |
| Enclosure Type | complete ready for use |
| Net Weight | 0.31 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Control Station Type | double insulated |
| Connections - Terminals | screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 61140 |
| Mechanical Interlocking | with mechanical interlocking |
| Mechanical Durability | 1000000 cycles |
| Control Button Type | first push-button 1 NO raise, slow || second push-button 1 NO lower, slow || stop push-button Ø 30 mm 1 NC latching |
| Electrical Circuit Type | control circuit |
| Contact Code Designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A |
| Rated Operational Power In W | 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
| Ik Degree Of Protection | IK08 conforming to EN 50102 |
|---|---|
| Terminal Identifier | (13-14)NO || (11-12)NC |
| Terminals Description Iso N°2 | (11-12)NC |
| Standards | CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60204-32 |
| Short-Circuit Protection | 10 A fuse protection cartridge gG |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Product Compatibility | ZB2BE101 for each direction || ZB2BE102 for emergency stop |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Control Type | intuitive |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Control Station Composition | 2 booted push-buttons + 1 emergency stop |
| Contact Operation | slow-break |
| Control Station Colour | yellow |
| Operating Force | 13-15 N |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Enclosure Material | polypropylene |
| Protective Treatment | TH |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP070905EN |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Circularity Profile | N/A |
Contractual warranty
| Warranty | 18 months |
|---|
