Schneider Electric XACA205 Harmony XAC Pendant Control Station, Yellow, Pistol Grip, 2 Push Buttons, IP65
- MPN: XACA205
- PPN: SCH-XACA205
CAD
$173.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

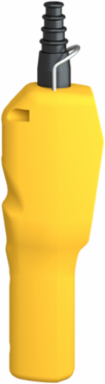

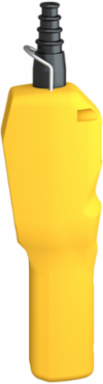

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylène enclosure with 2 standard push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Features
- The XACA205 is a complete, ready-to-use pendant control station from the Harmony XAC range. It features an intuitive pistol-grip profile engineered specifically for the control of single-speed hoist motors, overhead cranes, and mechanical handling equipment. Operating on standard control circuits, this pendant replaces complex custom assemblies with a pre-configured solution for industrial lifting applications.

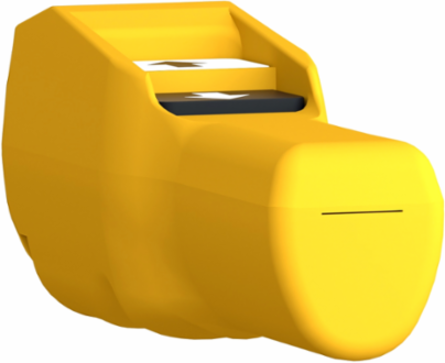

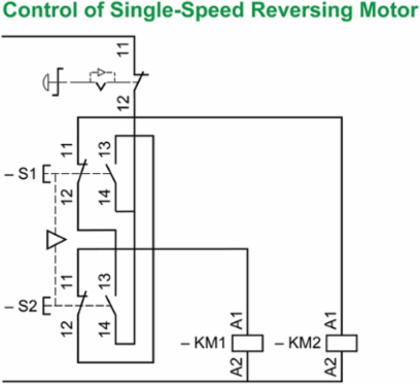

- The control interface features two standard pushbuttons that control opposite directions of travel. The first button is pre-mapped for the "Raise" command, while the second button manages the "Lower" command. To prevent electrical phase shorts or conflicting motor signals, the buttons are equipped with an internal mechanical interlock that physically blocks both commands from being depressed simultaneously.
- Each direction is backed by a combination of one Normally Open and one Normally Closed (1 NO + 1 NC) slow-break contact blocks (utilizing ZB2BE101 and ZB2BE102 points). Carrying a heavy-duty A600 and Q600 rating, the control station supports up to 10 Amps of conventional enclosed thermal current. It manages operational control limits of 3 Amps at 240V AC or 1.2 Amps at 600V AC (A600) and 0.27 Amps at 250V AC or 0.1 Amps at 600V AC (Q600), and incorporates a 10 Amp gG cartridge fuse circuit protection framework.
- The double-insulated pendant body is molded from a high-visibility yellow polypropylene composite material that is easily spotted on busy factory floors. Built for demanding overhead industrial work environments, the structure features high physical resilience with a verified IK08 impact rating and a shock resistance threshold up to 100 gn. This allows the assembly to survive repetitive drops and collisions against concrete structural pillars or heavy machinery frames without shattering the internal mechanics.

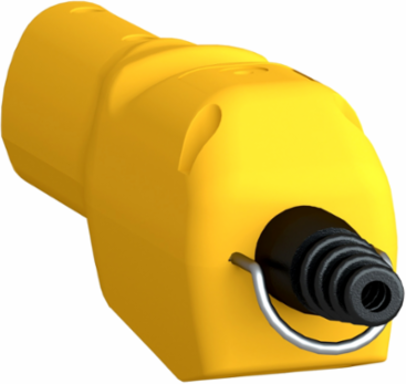

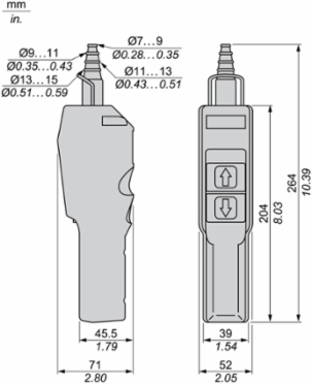

- The pendant achieves a strict IP65 environmental rating, making it completely dust-tight and resistant to low-pressure water streams. The top of the pistol-grip handle features a flexible rubber sleeve with a stepped entry port designed to seal around multi-conductor crane cables measuring 7 mm to 15 mm in outer diameter. This protective layer ensures that internal contact surfaces stay dry and free from airborne contaminants in industrial washdown bays or unheated outdoor loading docks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Physical Attributes
- Control Station Color
- yellow
Complementary Attributes
- Maximum Resistance Across Terminals
- 25 MOhm
Rated Operational Power In W40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Certificate Agency
- UL, CSA
- Terminals Description Iso N°1
- (11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.2628671329
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.440955711
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Cable Entry
- rubber sleeve with stepped entry 7-15 mm
- Control Button Type
- first push-button 1 NC + 1 NO raise, slowsecond push-button 1 NC + 1 NO lower, slow
- Control Station Composition
- 2 push-buttons
- Control Type
- intuitive
- Electrical Circuit Type
- control circuit
- Enclosure Type
- complete ready for use
- Mechanical Interlocking
- with mechanical interlocking
- Overvoltage Category
- class II conforming to IEC 61140
- Product Or Component Type
- pendant control station
- Range Of Product
- Harmony XAC
- Shock Resistance
- 100 gn IEC 60068-2-27
- Sustainable Packaging
- No
- Vibration Resistance
- 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
- Control Station Color
- yellow
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Czech Republic
- Energy Model - Use [B6]
- Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
- Recyclability Potential In %
- 32
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Short-circuit Protection
- 10 A fuse protection cartridge gG
- Package Weight(Lbs)
- 282.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Terminal Identifier(11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
Connections - Terminalsscrew clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
Carbon Footprint Of The Distribution Phase [A4]0.0608787879, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0014508858, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Operationslow-break
Control Station Applicationcontrol of single speed hoist motor
Control Station Typedouble insulated
Device Short NameXACA pistol grip
Enclosure Materialpolypropylene
Mechanical Durability1000000 cycles
Operating Force13-15 N
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
ReturnabilityYes
Software VersionEIME v5.9.4
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP0709005EN
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Energy Model - End Of Life [C1-c4]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
[Ithe] Conventional Enclosed Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109170
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1.7661525175
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- ZB2BE102 + ZB2BE101 for each direction
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2022-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP0709005EN
Ip Degree Of ProtectionIP65 conforming to IEC 60529
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP0709005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- pendant control station
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000234
ETIM 9EC000234
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
