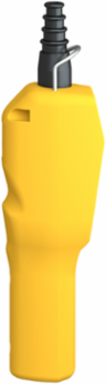

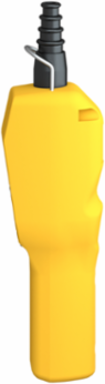

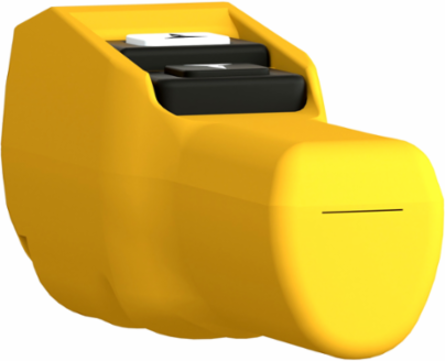

Schneider Electric XACA217 Harmony XAC Pendant Control Station Pistol Grip with 2 Push Buttons, Yellow
Schneider Electric XACA217 Harmony XAC Pendant Control Station Pistol Grip with 2 Push Buttons, Yellow
- MPN: XACA217
- PPN: SCH-XACA217
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$246.02/ EA
Description
This Harmony XACA217 is a pendant station pistol grip with 2 booted push buttons for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Specifications
Complementary
- Product Certifications
- CSA || UL
- Control Station Application

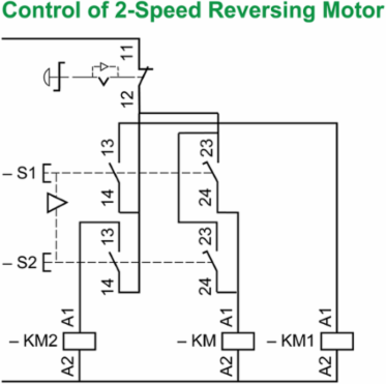

- control of 2-speed hoist motor
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- IEC 60204-32 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14
- Short-Circuit Protection
- 10 A fuse protection cartridge gG
- Shock Resistance
- 100 gn IEC 60068-2-27
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Product Compatibility
- ZB2BE101 + ZB2BE201 for each direction
- Ip Degree Of Protection
- IP65 IEC 60529
- Control Type
- intuitive
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Control Station Composition
- 2 booted push-buttons
- Contact Operation
- slow-break || staggered
- Control Station Colour
- yellow
- Operating Force
- 13-15 N
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Enclosure Material
- polypropylene
- Protective Treatment
- TH
Ik Degree Of ProtectionIK08 conforming to IEC 62262
Terminal Identifier(13-14)NO || (11-12)NC
Terminals Description Iso N°1(23-24)NO_CL || (13-14)NO
Maximum Resistance Across Terminals25 MOhm

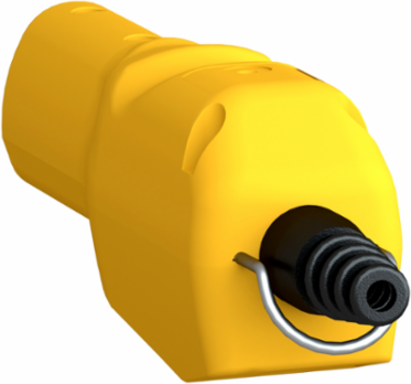

Cable Entryrubber sleeve with stepped entry 7-15 mm
Enclosure Typecomplete ready for use
Net Weight0.32 kg
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Control Station Typedouble insulated
Connections - Terminalsscrew clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
Ambient Air Temperature For Storage-40-70 °C
Overvoltage Categoryclass II IEC 61140
Mechanical Interlockingwith mechanical interlocking
Mechanical Durability1000000 cycles
Control Button Typefirst push-button 2 NO (2 step) raise, slow-fast || second push-button 2 NO (2 step) lower, slow-fast
Electrical Circuit Typecontrol circuit
Contact Code DesignationA600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Rated Operational Power In W40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP070905EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Contractual warranty
- Warranty
- 18 months
Specifications
- Range Of Product
- Harmony XAC
- Device Short Name
- XACA pistol grip
Product Or Component Typependant control station
