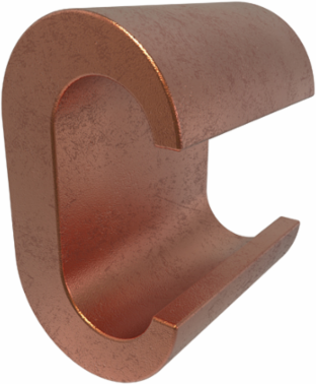

Permaground Copper Grounding C Crimp, Main Conductor Range 2 Str-2 Sol, Tap Range 2 Str-2 Sol, UL, CSA

Documentation & Downloads

ILSCO ULT-7 Permaground Copper Grounding C Crimp, Main Conductor Range 2 Str-2 Sol, Tap Range 2 Str-2 Sol, UL, CSA

MPN: ULT-7
UPC: 676566800523
PPN: ILC-ULT-7
UNSPSC: 39121448

$20.29

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

UTILCO Copper Compression Grounding C Crimp, Compression connection, Copper material, Bare plated connector, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper Primary Conductor 2 Str and 2 Sol, Copper Secondary Conductor 2 Sol and 2 Str, rated for 35 kV, primary color Copper, die index ND-C,

Documentation & Downloads

Specifications

Key Specifications

Type: Item

ItemUPCCode: 67656680052

ItemCatalogIndicator: U

ItemConductorRangeCUStrandedPrimaryrunmainline: 2 Str

ItemConductorSizeCUPrimaryrunmainline: 2 Sol,2 Str

ItemConductorRangeCUSolidSecondarytapload: 2 Sol

ItemLength: 1.047

ItemWidth: 0.614

ItemHeight: 0.826

ItemWeight: 0.084

ItemConductorMaterial: Copper

ItemColor: Copper

ItemTemperatureRating: 90°C

ItemCSAFileNumber: LR-29601

ItemULControlNumber: 453G

ItemULCULUSSpecifications: UL 486A/B Listed,UL 467 Listed

ItemConnection: Compression

ItemILSCOsDieIndexNumber: ND-C

ItemBagQuantity: 1

ItemStatusReady

ItemUNSPSCCode39121448

ItemDualRatedFalse

ItemConductorRangeCUSolidPrimaryrunmainline2 Sol

ItemConductorRangeCUStrandedSecondarytapload2 Str

ItemConductorSizeCUSecondarytapload2 Sol,2 Str

ItemLengthmm26.5938

ItemWidthmm15.5956

ItemHeightmm20.9804

ItemMaterialCopper

ItemConnectorFinishBare

ItemDirectBurialTrue

ItemVoltageRating35 kV

ItemCSAStandardC22.2 No. 65-03

ItemULFileNumberE6207

ItemProp65This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

ItemConductorTypeSolid,Stranded

ItemNumberofMountingHoles0
