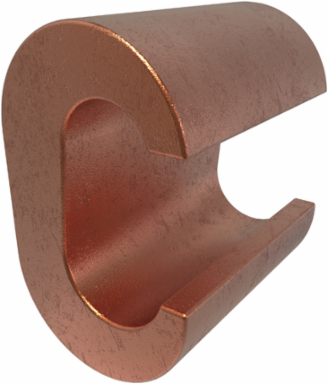

ILSCO ULT-6 Permaground Copper Grounding C Crimp, Main Conductor Range 2 Str-2 Sol, Tap Range 4-8 Sol, UL, CSA
- MPN: ULT-6
- UPC: 676566800509
- PPN: ILC-ULT-6
- UNSPSC: 39121448
CAD
$20.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
UTILCO Copper Compression Grounding C Crimp, Compression connection, Copper material, Bare plated connector, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper Primary Conductor 2 Str and 2 Sol, Copper Secondary Conductor 4 Sol - 8 Sol and 4 Str - 8 Str, rated for 35 kV, primary color Copper, die index ND-C,
Documentation & Downloads
Specifications
Key Specifications
- Type
- Item
- ItemUPCCode
- 67656680050
- ItemCatalogIndicator
- U
- ItemConductorRangeCUStrandedPrimaryrunmainline
- 2 Str
- ItemConductorSizeCUPrimaryrunmainline
- 2 Sol,2 Str
- ItemConductorRangeCUSolidSecondarytapload
- 4 Sol - 8 Sol
- ItemLength
- 0.99
- ItemWidth
- 0.83
- ItemHeight
- 0.614
- ItemWeight
- 0.0875533073571383
- ItemConductorMaterial
- Copper
- ItemColor
- Copper
- ItemTemperatureRating
- 90°C
- ItemCSAFileNumber
- LR-29601
- ItemULControlNumber
- 453G
- ItemULCULUSSpecifications
- UL 486A/B Listed,UL 467 Listed
- ItemConnection
- Compression
- ItemILSCOsDieIndexNumber
- ND-C
- ItemBagQuantity
- 1
ItemStatusReady
ItemUNSPSCCode39121448
ItemDualRatedFalse
ItemConductorRangeCUSolidPrimaryrunmainline2 Sol
ItemConductorRangeCUStrandedSecondarytapload4 Str - 8 Str
ItemConductorSizeCUSecondarytapload4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,4 Str,5 Str,6 Str,7 Str,8 Str
ItemLengthmm25.146
ItemWidthmm21.082
ItemHeightmm15.5956
ItemMaterialCopper
ItemConnectorFinishBare
ItemDirectBurialTrue
ItemVoltageRating35 kV
ItemCSAStandardC22.2 No. 65-03
ItemULFileNumberE6207
ItemProp65This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
ItemConductorTypeSolid,Stranded
ItemNumberofMountingHoles0
