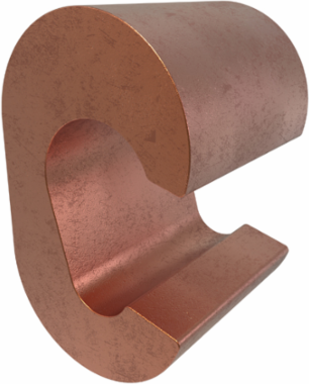

ILSCO ULT-10 Permaground Copper Grounding C Crimp, Main Conductor Range 4/0-3/0 Sol, Tap Range 2-6 Sol, UL, CSA
- MPN: ULT-10
- UPC: 676566800585
- PPN: ILC-ULT-10
- UNSPSC: 39121448
CAD
$46.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
UTILCO Copper Compression Grounding C Crimp, Compression connection, Copper material, Bare plated connector, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper Primary Conductor 4/0 Str - 3/0 Str and 4/0 Sol - 3/0 Sol, Copper Secondary Conductor 2 Sol - 6 Sol and 2 Str - 6 Str, rated for 35 kV, primary color Copper, die index D3,
Documentation & Downloads
Specifications
Key Specifications
| Type | Resource |
|---|---|
| ItemUPCCode | 67656680058 |
| ItemCatalogIndicator | U |
| ItemConductorRangeCUStrandedPrimaryrunmainline | 4/0 Str - 3/0 Str |
| ItemConductorSizeCUPrimaryrunmainline | 4/0 Sol,3/0 Sol,4/0 Str,3/0 Str |
| ItemConductorRangeCUSolidSecondarytapload | 2 Sol - 6 Sol |
| ItemLength | 1 |
| ItemWidth | 1.075 |
| ItemHeight | 1.628 |
| ItemWeight | 0.316405769346442 |
| ItemConductorMaterial | Copper |
| ItemColor | Copper |
| ItemTemperatureRating | 90°C |
| ItemCSAFileNumber | LR-29601 |
| ItemULControlNumber | 453G |
| ItemULCULUSSpecifications | UL 486A/B Listed,UL 467 Listed |
| ItemConnection | Compression |
| ItemILSCOsDieIndexNumber | D3 |
| ItemBagQuantity | 1 |
| ItemStatus | Ready |
|---|---|
| ItemUNSPSCCode | 39121448 |
| ItemDualRated | False |
| ItemConductorRangeCUSolidPrimaryrunmainline | 4/0 Sol - 3/0 Sol |
| ItemConductorRangeCUStrandedSecondarytapload | 2 Str - 6 Str |
| ItemConductorSizeCUSecondarytapload | 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,2 Str,3 Str,4 Str,5 Str,6 Str |
| ItemLengthmm | 25.4 |
| ItemWidthmm | 27.305 |
| ItemHeightmm | 41.3512 |
| ItemMaterial | Copper |
| ItemConnectorFinish | Bare |
| ItemDirectBurial | True |
| ItemVoltageRating | 35 kV |
| ItemCSAStandard | C22.2 No. 65-03 |
| ItemULFileNumber | E6207 |
| ItemProp65 | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| ItemConductorType | Solid,Stranded |
| ItemNumberofMountingHoles | 0 |
