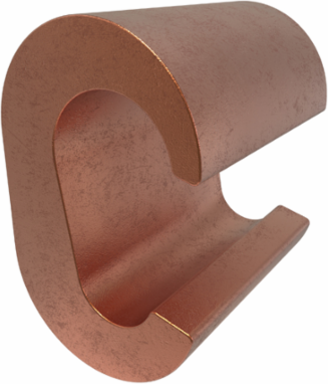

Permaground Copper Grounding C Crimp, Main Conductor Range 4-6 Sol, Tap Range 8 Str-8 Sol, UL, CSA

Documentation & Downloads

ILSCO ULT-3 Permaground Copper Grounding C Crimp, Main Conductor Range 4-6 Sol, Tap Range 8 Str-8 Sol, UL, CSA

MPN: ULT-3
UPC: 676566800554
PPN: ILC-ULT-3
UNSPSC: 39121448

$11.13

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

UTILCO Copper Compression Grounding C Crimp, Compression connection, Copper material, Bare plated connector, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper Primary Conductor 4 Str - 6 Str and 4 Sol - 6 Sol, Copper Secondary Conductor 8 Sol and 8 Str, rated for 35 kV, primary color Copper, die index ND-BG,

Documentation & Downloads

Specifications

Key Specifications

Type: Item

ItemUPCCode: 67656680055

ItemCatalogIndicator: U

ItemConductorRangeCUStrandedPrimaryrunmainline: 4 Str - 6 Str

ItemConductorSizeCUPrimaryrunmainline: 4 Sol,5 Sol,6 Sol,4 Str,5 Str,6 Str

ItemConductorRangeCUSolidSecondarytapload: 8 Sol

ItemLength: 0.47

ItemWidth: 0.615

ItemHeight: 0.735

ItemWeight: 0.0353768071153485

ItemConductorMaterial: Copper

ItemColor: Copper

ItemTemperatureRating: 90°C

ItemCSAFileNumber: LR-29601

ItemULControlNumber: 453G

ItemULCULUSSpecifications: UL 486A/B Listed,UL 467 Listed

ItemConnection: Compression

ItemILSCOsDieIndexNumber: ND-BG

ItemBagQuantity: 1

ItemStatusReady

ItemUNSPSCCode39121448

ItemDualRatedFalse

ItemConductorRangeCUSolidPrimaryrunmainline4 Sol - 6 Sol

ItemConductorRangeCUStrandedSecondarytapload8 Str

ItemConductorSizeCUSecondarytapload8 Sol,8 Str

ItemLengthmm11.938

ItemWidthmm15.621

ItemHeightmm18.669

ItemMaterialCopper

ItemConnectorFinishBare

ItemDirectBurialTrue

ItemVoltageRating35 kV

ItemCSAStandardC22.2 No. 65-03

ItemULFileNumberE6207

ItemProp65This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

ItemConductorTypeSolid,Stranded

ItemNumberofMountingHoles0
