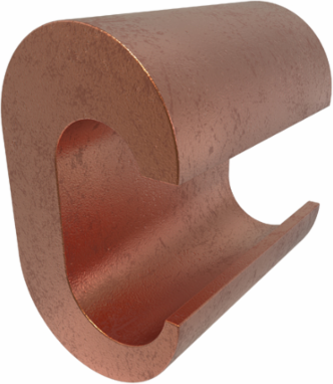

ILSCO ULT-4 Permaground Copper Grounding C Crimp, Main Conductor Range 4-6 Sol, Tap Range 6 Str-6 Sol, UL, CSA

MPN: ULT-4
UPC: 676566800462
PPN: ILC-ULT-4
UNSPSC: 39121448

$11.68

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

UTILCO Copper Compression Grounding C Crimp, Compression connection, Copper material, Bare plated connector, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper Primary Conductor 4 Str - 6 Str and 4 Sol - 6 Sol, Copper Secondary Conductor 6 Sol and 6 Str, rated for 35 kV, primary color Copper, die index ND-BG,

Documentation & Downloads

Specifications

Key Specifications

Type	Item
ItemUPCCode	67656680046
ItemCatalogIndicator	U
ItemConductorRangeCUStrandedPrimaryrunmainline	4 Str - 6 Str
ItemConductorSizeCUPrimaryrunmainline	4 Sol,5 Sol,6 Sol,4 Str,5 Str,6 Str
ItemConductorRangeCUSolidSecondarytapload	6 Sol
ItemLength	0.765
ItemWidth	0.46
ItemHeight	0.7
ItemWeight	0.043
ItemConductorMaterial	Copper
ItemColor	Copper
ItemTemperatureRating	90°C
ItemCSAFileNumber	LR-29601
ItemULControlNumber	453G
ItemULCULUSSpecifications	UL 486A/B Listed,UL 467 Listed
ItemConnection	Compression
ItemILSCOsDieIndexNumber	ND-BG
ItemBagQuantity	1

ItemStatus	Ready
ItemUNSPSCCode	39121448
ItemDualRated	False
ItemConductorRangeCUSolidPrimaryrunmainline	4 Sol - 6 Sol
ItemConductorRangeCUStrandedSecondarytapload	6 Str
ItemConductorSizeCUSecondarytapload	6 Sol,6 Str
ItemLengthmm	19.431
ItemWidthmm	11.684
ItemHeightmm	17.78
ItemMaterial	Copper
ItemConnectorFinish	Bare
ItemDirectBurial	True
ItemVoltageRating	35 kV
ItemCSAStandard	C22.2 No. 65-03
ItemULFileNumber	E6207
ItemProp65	This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
ItemConductorType	Solid,Stranded
ItemNumberofMountingHoles	0
