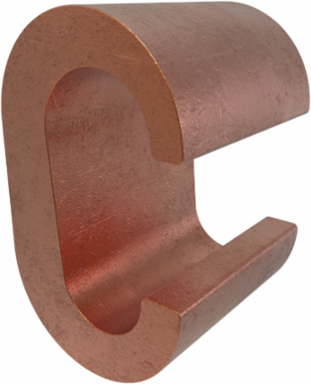

ILSCO ULT-11-Z Permaground Copper Grounding C Crimp, Main Conductor Range 4/0-3/0 Sol, Tap Range 2/0-1/0 Sol, UL, CSA
- MPN: ULT-11-Z
- UPC: 783669930863
- PPN: ILC-ULT-11-Z
CAD
$55.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Copper Grounding C Crimp, Main Conductor Range 4/0-3/0 Sol, Tap Range 2/0-1/0 Sol, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.628 in | 41.3512 mm
- Weight
- 0.285 lbs
Length1 in | 25.4 mm
Width1.075 in | 27.305 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Height BX (IN)
- 2
- Length (mm)
- 25.4
- Width BX (IN)
- 6.188
Height (mm)41.3512
Weight BX (LB)7.2719
Width (mm)27.305
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL / CULUS SpecificationUL 467 Listed, UL 486A/B Listed
Additional Class Attributes
- Barrel Marking
- Hard
ILSCOs Die Index NumberD3
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishBare
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 4/0 Sol - 3/0 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 4/0 Str - 3/0 Str
Conductor Range CU Solid (Secondary, tap, load)2/0 Sol - 1/0 Sol
Conductor Range CU Stranded (Secondary, tap, load)2/0 Str - 1/0 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-1
Carton Quantity DescriptionSTD PACK QTY 25
Dual RatedNo
UPC Code78366993086
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
