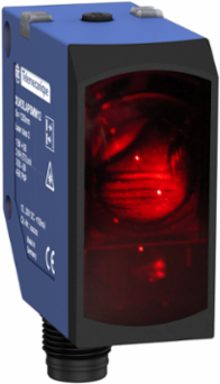

Telemecanique Sensors XUK5LAPSMM12 Photoelectric sensors XU, photo electric laser sensor, XUK, diffuse energetic, Sn 1,2 m, 10...30 VDC, M12
- MPN: XUK5LAPSMM12
- PPN: TES-XUK5LAPSMM12
CAD
$318.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Photoelectric sensors XU, photo electric laser sensor, XUK, diffuse energetic, Sn 1,2 m, 10...30 VDC, M12
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | 1 male connector M12, 4 pins |
|---|---|
| Discrete Output Function | 1 NO or 1 NC programmable |
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Sensor Name | XUK |
| Wiring Technique | 4-wire |
| Detection System | diffuse |
| Supply Circuit Type | DC |
| [Sn] Nominal Sensing Distance | 1.2-1.2 m diffuse |
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Emission | red laser diffuse class 1 |
| Material | plastic |
| Series Name | Application material handling || Application assembly |
| Sensor Design | compact 50 x 50 |
| Electronic Sensor Type | photo-electric sensor |
Complementary
| Current Consumption | <= 30 mA no-load |
|---|---|
| Switching Frequency | <= 250 Hz |
| Status Led | 1 LED yellow)output state || 1 LED green/yellow)supply on/output state |
| Lens Material | PMMA |
| Net Weight | 0.035 kg |
| Maximum Delay Recovery | 0.8 ms |
| Maximum Sensing Distance | 1.2 m diffuse |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Enclosure Material | ABS/PC |
| Width | 23 mm |
| Depth | 50 mm |
| Height | 50 mm |
|---|---|
| Maximum Delay Response | 0.8 ms |
| Setting-Up | using teach button or remote teaching |
| Maximum Voltage Drop | <1.5 V closed state) |
| Cable Outer Diameter | 6 mm |
| Maximum Delay First Up | 300 ms |
| Supply Voltage Limits | 10-36 V DC |
| Wire Insulation Material | PVC |
| Cable Composition | 3 x 0.34 mm² |
| Output Type | solid state |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
Environment
| Product Certifications | Ecolab || CE || cULus |
|---|---|
| Ambient Air Temperature For Operation | -20-60 °C || -20-50 °C, UL |
| Ambient Air Temperature For Storage | -20-80 °C |
| Vibration Resistance | 7 gn 10-55 Hz) IEC 60068-2-6 |
|---|---|
| Shock Resistance | 10 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 IEC 60529 || IP69K DIN 40050 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Mercury Free | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
