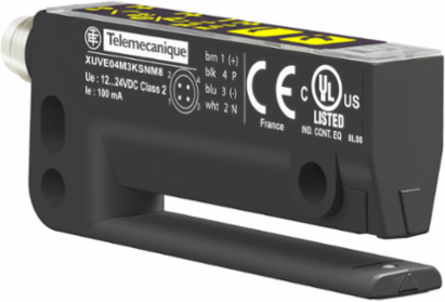

Telemecanique Sensors XUVE04M3KSNM8 Photoelectric sensors XU, photoelec sensor label fork 40x3, 12...24 V DC, PNP/NPN NO/NC connect M8
- MPN: XUVE04M3KSNM8
- PPN: TES-XUVE04M3KSNM8
- UNSPSC: 39121528
CAD
$207.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This optical fork is part of the XU Application range, an offer of photo-electric sensors. It is recommended for the detection of opaque labels. 4-wire, DC supply, NO or NC programmable function, solid-state output, M8 connector. Thru-beam system, with infrared transmission. Sensing distance 3mm. Depth 40mm. The adjustment is made by numeric potentiometer and red LED. The seetings can be protected by locking keypad.
Documentation & Downloads
Specifications
Key Specifications
| Passage Width | 3 mm |
|---|---|
| Electrical Connection | 1 male connector M8, 4 pins |
| Discrete Output Function | 2 NO/NC programmable |
| Passage Depth | 40 mm |
| Sensor Name | XUV |
| Wiring Technique | 4-wire |
| Product Specific Application | detection of labels |
| Sensor Design | fork |
| Electronic Sensor Type | photo-electric sensor |
| Type Of Setting | without |
|---|---|
| Discrete Output Type | PNP and NPN |
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Emission | infrared |
| Material | PA (polyamide) 12 |
| Series Name | Application packaging |
| Detection System | thru beam |
| Supply Circuit Type | DC |
| [Sn] Nominal Sensing Distance | 3-3 mm thru beam |
Complementary
| Height | 25 mm |
|---|---|
| Maximum Delay Response | 0.1 ms |
| Status Led | output state 1 LED yellow) || adjustment mode and keypad locking 1 LED red) |
| Lens Material | PC |
| Net Weight | 0.035 kg |
| Minimum Distance Between Labels | 2 mm |
| Maximum Delay First Up | 30 ms |
| Minimum Label Length | 2 mm |
| Enclosure Material | polyamide |
| Output Type | solid state |
| Maximum Passing Speed Of Object | 200 m/min |
| Switching Frequency | <= 10 kHz |
|---|---|
| Type Of Output Signal | discrete |
| Setting-Up | numeric potentiometer |
| Maximum Voltage Drop | <2 V closed state) |
| Accuracy | +/- 0.05 mm 150 m/min |
| Maximum Delay Recovery | 0.1 ms |
| Supply Voltage Limits | 10-30 V DC |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Width | 10 mm |
| Depth | 64 mm |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
Environment
| Product Certifications | CE || cULus |
|---|---|
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -30-80 °C |
| Ambient Air Temperature For Operation | -20-60 °C |
|---|---|
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP65 IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Mercury Free | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
