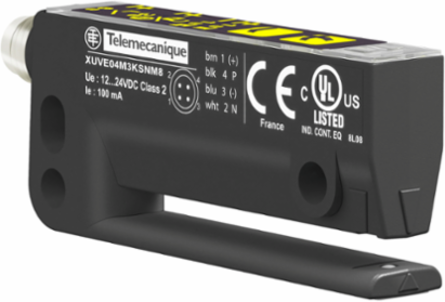

Telemecanique Sensors XUVE04M3PSNM8 Photoelectric sensors XU, photoelec sensor label fork 40x3, 12...24 V DC, PNP NO/NC connect M8

MPN: XUVE04M3PSNM8
PPN: TES-XUVE04M3PSNM8
UNSPSC: 39121528

$207.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor has a fork design. It has a through-beam detection system and infrared emission. It supports 3mm thru beam nominal sensing distance and 1 normally open or 1 normally closed programmable PNP solid state discrete output. It is furnished with 4-pin M8 male connector for electrical connection and 2 LEDs for output state and adjustment mode and keypad locking. With numeric potentiometer setting-up. It is a photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection and a switching frequency of ≤10kHz. With ±0.05mm at 150m/min accuracy. It is an IP65 rated product. The enclosure is made of polyamide and PC lens. Its dimensions are 10mm (Width) x 64mm (Depth) x 25mm (Height) and weighs 0.035kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE and CULus.

Documentation & Downloads

Specifications

Key Specifications

Passage Width	3 mm
Electrical Connection	1 male connector M8, 4 pins
Discrete Output Function	1 NO or 1 NC programmable
Passage Depth	40 mm
Sensor Name	XUV
Wiring Technique	4-wire
Product Specific Application	detection of labels
Sensor Design	fork
Electronic Sensor Type	photo-electric sensor

Type Of Setting	with
Discrete Output Type	PNP
Range Of Product	Telemecanique Photoelectric sensors XU
Emission	infrared
Material	PA (polyamide) 12
Series Name	Application packaging
Detection System	thru beam
Supply Circuit Type	DC
[Sn] Nominal Sensing Distance	3-3 mm thru beam

Complementary

Height	25 mm
Maximum Delay Response	0.1 ms
Status Led	output state 1 LED yellow) \|\| adjustment mode and keypad locking 1 LED red)
Lens Material	PC
Net Weight	0.035 kg
Minimum Distance Between Labels	2 mm
Maximum Delay First Up	30 ms
Minimum Label Length	2 mm
Enclosure Material	Polyamide
Output Type	solid state
Maximum Passing Speed Of Object	200 m/min

Switching Frequency	<= 10 kHz
Type Of Output Signal	discrete
Setting-Up	numeric potentiometer
Maximum Voltage Drop	<2 V closed state)
Accuracy	+/- 0.05 mm 150 m/min
Maximum Delay Recovery	0.1 ms
Supply Voltage Limits	10-30 V DC
Switching Capacity In Ma	<= 100 mA overload and short-circuit protection)
Width	10 mm
Depth	64 mm
[Us] Rated Supply Voltage	12...24 V DC reverse polarity protection

Environment

Product Certifications	cULus \|\| CE
Vibration Resistance	7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Ambient Air Temperature For Storage	-30-80 °C

Ambient Air Temperature For Operation	-20-60 °C
Shock Resistance	30 gn 11 ms) IEC 60068-2-27
Ip Degree Of Protection	IP65 IEC 60529

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
