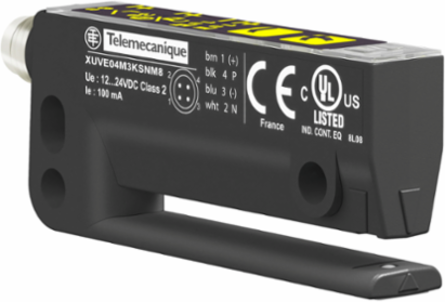

Telemecanique Sensors XUVE04M3NSNM8 Photoelectric sensors XU, photoelec sensor label fork 40x3, 12...24 V DC, NPN NO/NC connect M8

Photoelectric sensors XU, photoelec sensor label fork 40x3, 12...24 V DC, NPN NO/NC connect M8
  • MPN: XUVE04M3NSNM8
  • PPN: TES-XUVE04M3NSNM8

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$207.77/ EA

Specifications

Environment

Product Certifications
CE || cULus
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Ambient Air Temperature For Storage
-30-80 °C
Ambient Air Temperature For Operation-20-60 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Height
25 mm
Maximum Delay Response
0.1 ms
Status Led
output state 1 LED yellow) || adjustment mode and keypad locking 1 LED red)
Lens Material
PC
Net Weight
0.035 kg
Minimum Distance Between Labels
2 mm
Maximum Delay First Up
30 ms
Minimum Label Length
2 mm
Enclosure Material
polyamide
Output Type
solid state
Maximum Passing Speed Of Object
200 m/min
Switching Frequency<= 10 kHz
Type Of Output Signaldiscrete
Setting-Upnumeric potentiometer
Maximum Voltage Drop<2 V closed state)
Accuracy+/- 0.05 mm 150 m/min
Maximum Delay Recovery0.1 ms
Supply Voltage Limits10-30 V DC
Switching Capacity In Ma<= 100 mA overload and short-circuit protection)
Width10 mm
Depth64 mm
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection

Specifications

Passage Width
3 mm
Electrical Connection
1 male connector M8, 4 pins
Discrete Output Function
1 NO or 1 NC programmable
Passage Depth
40 mm
Sensor Name
XUV
Wiring Technique
4-wire
Product Specific Application
detection of labels
Sensor Design
fork
Electronic Sensor Type
photo-electric sensor
Type Of Settingwith
Discrete Output TypeNPN
Range Of ProductTelemecanique Photoelectric sensors XU
Emissioninfrared
MaterialPA (polyamide) 12
Series NameApplication packaging
Detection Systemthru beam
Supply Circuit TypeDC
[Sn] Nominal Sensing Distance3-3 mm thru beam
