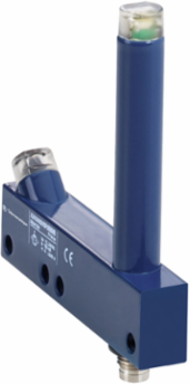

Telemecanique Sensors XUVA1515PANM8 Photoelectric sensors XU, XUV, fork, 150 mm, 12...24 VDC, M8
Telemecanique Sensors XUVA1515PANM8 Photoelectric sensors XU, XUV, fork, 150 mm, 12...24 VDC, M8
- MPN: XUVA1515PANM8
- PPN: TES-XUVA1515PANM8
- UNSPSC: 39121528
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$491.08/ EA
Description
This optical fork, without adjustment, is part of the XU range, an offer of photo-electric sensors. With a passageway of 150mm, it is recommended for the detection of objects on small conveyors or vibrating bowls. DC supply, solid-state output. M8 connector, 3-pin. Thru-beam system, with red modulated LED. Sensing distance from 2mm to 180mm.
Specifications
Environment
- Product Certifications
- CE
- Vibration Resistance
- 7 gn +/- 0.75 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Immunity To Ambient Light
- 10000 lux natural light || 5000 lux incandescent bulb
Ambient Air Temperature For Operation-10-60 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 || IP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Current Consumption
- < 20 mA no-load
- Type Of Output Signal
- discrete
- Maximum Voltage Drop
- <1.5 V closed state)
- Net Weight
- 0.19 kg
- Switching Capacity In Ma
- 100 mA overload and short-circuit protection)
- Output Type
- solid state
Switching Frequency4000 Hz
Status Ledoutput state 1 LED yellow)
Spot Diameter0.05 in (1.2 mm)
Supply Voltage Limits10-30 V DC
Enclosure Materialpainted aluminium and polyamide/glass
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Specifications
- Passage Width
- 150 mm
- Discrete Output Type
- PNP
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Emission
- red LED, modulated
- Material
- metal/plastic
- Series Name
- general purpose
- Detection System
- thru beam
- Supply Circuit Type
- DC
- [Sn] Nominal Sensing Distance
- 180-180 mm
Electrical Connection1 male connector M8, 3 pins
Discrete Output Function1 NO
Passage Depth150 mm
Sensor NameXUVA
Wiring Technique3-wire
Product Specific Applicationdetection on small conveyor
Sensor Designfork L
Electronic Sensor Typephoto-electric sensor
