Balluff BOD 23K-LB01-S92 Photoelectric distance sensors - BOD001P
- MPN: BOD 23K-LB01-S92
- PPN: BAL-BOD001P
CAD
$815.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

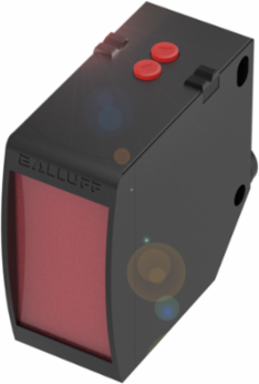

Photoelectric distance sensors - BOD001P
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
- Series
- 23K
- Interface
- Analog, current 4…20 mA; linear rising/falling; PNP/NPN/Auto-Detect NO/NC
- Principle of optical operation
- Light time-of-flight
- Light type
- Laser Red light
- Range
- 100...5000 mm
- Repeat accuracy
- 0.024 % FS
- Connection
- Connector, M12x1-Male, 5-pin
- Operating voltage Ub
- 18...30 VDC
Special characteristicsWashdown
Dimension51 x 23 x 52.4 mm
Principle of operationPhotoelectric distance sensor BOD
Beam characteristicCollimated
Light spot size5.5 x 7 mm at 5 m
Accuracy±0.6 % FS
Resolution≤ 5.0 mm
Housing materialABS
Approval/ConformityCE; cULus; Ecolab; WEEE
