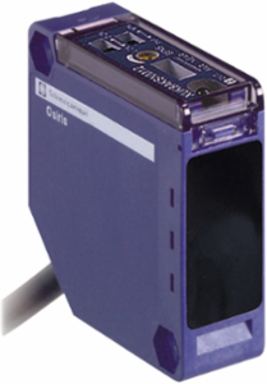

Telemecanique Sensors XUK8AKSNM12 Photoelectric sensors XU, photo electric laser sensor, XUK, BGS, Sn 1 m, 12...24 VDC, M12
- MPN: XUK8AKSNM12
- PPN: TES-XUK8AKSNM12
- UNSPSC: 39121528
CAD
$255.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This photo-electric sensor is part of the XU range, general purpose with an infrared transmission. It is a diffuse system sensor, with adjustable background suppression, long sensing distance with high accuracy. Mechanical display of setting. DC supply. Solid-state output. 3-wire, PNP or NPN programmable, NO or NC programmable function. This sensor features an M12 male connector, 4-pin. The connector can be set at 2 positions.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- 1 male connector M12, 4 pins
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Sensor Name
- XUK
- Wiring Technique
- 3-wire
- Detection System
- diffuse with background suppression
- Supply Circuit Type
- DC
- [Sn] Nominal Sensing Distance
- 1-1 m diffuse with background suppression
Discrete Output TypePNP or NPN
Type Of Output Signaldiscrete
Emissioninfrared laser, modulated diffuse with background suppression class 1
Materialplastic
Series Namegeneral purpose single mode
Sensor Designcompact 50 x 50
Electronic Sensor Typephoto-electric sensor
Complementary
- Current Consumption
- <= 30 mA no-load
- Switching Frequency
- <= 250 Hz
- Status Led
- 1 LED yellow)output state || 1 LED green)supply
- Lens Material
- PMMA
- Net Weight
- 0.035 kg
- Maximum Delay Recovery
- 2 ms
- Maximum Sensing Distance
- 1 m diffuse with background suppression
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
- Enclosure Material
- PC
- Output Type
- solid state
- Kit Composition
- with XUZA51 bracket fixing
Height50 mm
Maximum Delay Response2 ms
Setting-Upsensitivity adjustment by potentiometer
Maximum Voltage Drop<1.5 V closed state)
Minimum Object Diameter For Detection2 mm
Maximum Delay First Up300 ms
Supply Voltage Limits10-36 V DC
Wire Insulation MaterialPVC
Width18 mm
Depth50 mm
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Environment
- Product Certifications
- CE || Ecolab
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -30-70 °C
Vibration Resistance7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 double insulation IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111232EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111207EN
