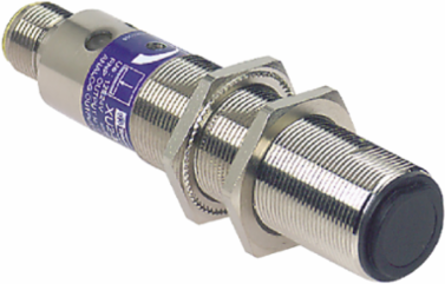

Telemecanique Sensors XU2M18AP20D Photoelectric sensors XU, XU2, thru beam, high gain, Sn 50 m, 12...24 VDC, M12

MPN: XU2M18AP20D
PPN: TES-XU2M18AP20D
UNSPSC: 39121528

$408.88

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in XU2 cylindrical M18 design. It has through-beam detection system. It supports axial line of sight, 50m nominal sensing distance and solid state analogue output. It is furnished with 4-pin M12 male connector for electrical connection. It has an infrared thru beam emission and 2 LEDs for supply on and operation. It is an IP67 rated product. This photoelectric sensor has a rated supply voltage of 12V to 24V DC with reverse polarity protection, a current consumption of ≤55mA and a switching frequency of ≤30Hz. The enclosure is made of nickel plated brass with PMMA lens. Its dimensions are 18mm (Diameter) x 95mm (Length) and weighs 0.155kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CSA, CE and UL. The kit includes transmitter and receiver.

Documentation & Downloads

Specifications

Key Specifications

Electrical Connection	1 male connector M12, 4 pins
Discrete Output Function	1 NO
Range Of Product	Telemecanique Photoelectric sensors XU
Line Of Sight Type	axial
Material	metal
Wiring Technique	3-wire
Detection System	thru beam
Supply Circuit Type	DC
[Sn] Nominal Sensing Distance	50-50 m thru beam

Discrete Output Type	PNP
Type Of Output Signal	discrete \|\| analogue
Emission	infrared thru beam
Sensor Name	XU2
Analogue Output Range	4...20 mA
Series Name	Application material handling
Sensor Design	cylindrical M18
Electronic Sensor Type	photo-electric sensor

Complementary

Current Consumption	<= 55 mA no-load
Maximum Delay Response	15 ms
Status Led	1 LED green)supply on \|\| 1 LED yellow)operation
Lens Material	PMMA
Add On Input	breaking test (transmitter)
Net Weight	0.155 kg
Maximum Delay First Up	50 ms
Supply Voltage Limits	10-30 V DC
Enclosure Material	Nickel Plated Brass
Add On Output	with analogue output
[Us] Rated Supply Voltage	12...24 V DC reverse polarity protection

Switching Frequency	<= 30 Hz
Diameter	18 mm
Setting-Up	sensitivity adjustment
Maximum Voltage Drop	<1.5 V closed state)
Length	95 mm
Maximum Delay Recovery	15 ms
Maximum Sensing Distance	70 m
Switching Capacity In Ma	<= 100 mA overload and short-circuit protection)
Output Type	solid state
Kit Composition	transmitter + receiver

Environment

Product Certifications	CSA \|\| CE \|\| UL
Ambient Air Temperature For Operation	-25-55 °C
Ambient Air Temperature For Storage	-40-70 °C

Vibration Resistance	25 gn +/- 2 mm 10-55 Hz) IEC 60068-2-6
Shock Resistance	30 gn 11 ms) IEC 60068-2-27
Ip Degree Of Protection	IP67 IEC 60529

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP111230EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Circularity Profile	ENVEOLI111208EN

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
