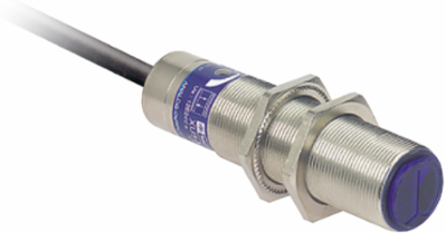

Telemecanique Sensors XU8M18MA230 Photoelectric sensors XU, XU8, BGS, Sn 0.12 m, 24...240VAC/DC, cable 2 m
- MPN: XU8M18MA230
- PPN: TES-XU8M18MA230
- UNSPSC: 39121528
CAD
$291.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This photo-electric sensor is part of the XU Application range. It is recommended for building and tertiary sectors. This sensor is a design 18 format body, pre-cabled. This sensor is pre-cabled, 2m, with the line of sight along case axis. 2-wire AC or DC supply, NO function. Solid-state output with adjsutable sensitivity. 0.12m sensing distance. Diffuse system with adjustable background suppression.
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | cable |
|---|---|
| Type Of Output Signal | discrete |
| Cable Length | 2 m |
| Line Of Sight Type | axial |
| Material | metal |
| Series Name | general purpose single mode |
| Sensor Design | cylindrical M18 |
| Electronic Sensor Type | photo-electric sensor |
| Discrete Output Function | 1 NO |
|---|---|
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Emission | infrared diffuse with background suppression |
| Sensor Name | XU8 |
| Wiring Technique | 2-wire |
| Detection System | diffuse with background suppression |
| Supply Circuit Type | AC/DC |
| [Sn] Nominal Sensing Distance | 0.12-0.12 m diffuse with background suppression |
Complementary
| Switching Frequency | <= 25 Hz |
|---|---|
| Diameter | 18 mm |
| Setting-Up | sensitivity adjustment |
| Maximum Voltage Drop | <6 V closed state) |
| Net Weight | 0.15 kg |
| Maximum Delay Recovery | 20 ms |
| Maximum Sensing Distance | 0.12 m |
| Switching Capacity In Ma | 10...200 mA to be used with 0.4 A quick-blow fuse in series with the load) |
| Enclosure Material | Nickel Plated Brass |
| Add On Output | without |
| Maximum Delay Response | 20 ms |
|---|---|
| Status Led | 1 LED yellow)output state |
| Lens Material | PMMA |
| Length | 82 mm |
| Maximum Residual Current | 1.5 mA open state |
| Maximum Delay First Up | 300 ms |
| Supply Voltage Limits | 20-264 V AC/DC |
| Wire Insulation Material | PvR |
| Output Type | solid state |
| [Us] Rated Supply Voltage | 24...240 V AC/DC |
Environment
| Product Certifications | CSA || UL || CE |
|---|---|
| Ambient Air Temperature For Operation | -25-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
|---|---|
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 double insulation IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111230EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI111208EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
