Carlo Gavazzi

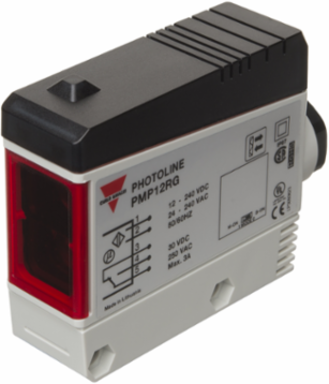

Carlo Gavazzi PMP12RI Photoelectric Sensor, Polarized Retro-reflective - Polarized Retro-reflective, Photoelectric Sensor, range 12 m, Polarized Red modulated light 660nm, Power Supply 10.8-264VDC&21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. 1/2\\

Photoelectric Sensor, Polarized Retro-reflective - Polarized Retro-reflective, Photoelectric Sensor, range 12 m, Polarized Red modulated light 660nm, Power Supply 10.8-264VDC&21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. 1/2\\
  • MPN: PMP12RI
  • PPN: CLG-PMP12RI

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$300.00/ EA

Description

Photoelectric Sensor, Polarized Retro-reflective - Polarized Retro-reflective, Photoelectric Sensor, range 12 m, Polarized Red modulated light 660nm, Power Supply 10.8-264VDC&21.6-264VAC, Relay SPDT, NO+NC, Terminals, IP67. 1/2

Specifications

Specifications

Predictive maintenance
No
Rated switching distance
12000
Output current, maximum
3000
Analogue output 0 V ... 10 V
No
Analogue output 4 mA ... 20 mA
No
With other analogue output
No
With communication interface analogue
No
With communication interface CANOpen
No
With communication interface Ethernet
No
With communication interface PROFIBUS
No
With communication interface RS-422
No
With communication interface SSD
No
Type of interface for safety communication
Other
Output type
Relay contact
Operation agent-safety class
Safety class 0
Width
25
Length
81
Material of optical surface
Plastic
Min. reflector distance
12000
Time of reaction
20
Type of safety acc. IEC 61496-1
1
Rated control supply voltage Us at AC 50HZ
Min.21.6-Max.264
Rated Operetional voltage UB at DC
Min.10.8-Max.264
With monitoring function downstream switching devices
No
Type of light
Polarized red light
With restart blockage
No
Degree of protection
IP67
With approval according to UL
Yes
Wall mounting/direct mounting
Yes
Housing material, specific
Plastic
IO-Link
No
Item Code 3
ERT25 | ERT50 | ER1 | ER100 | ER390 | ER4 | ER4060 | ER420 | ER42182 | ER423 | ER460 | ER483 | ER5060 | ER5080 | ER530 | ER640 | ER665 | ER681 | ER686 | ER689 | ER692 | ER8 | ER840
Product Main Family Group
Photoelectric sensors
Time DelaysNo
Sensing range, maximum12000
Target includedNo
Analogue output 0 mA ... 20 mANo
Analogue output -10 V ... +10 VNo
Setting procedureManual adjustment
With communication interface AS-InterfaceNo
With communication interface DeviceNetNo
With communication interface INTERBUSNo
With communication interface RS-232No
With communication interface RS-485No
With communication interface SSINo
Connection TypeScrew connection
Output functionChange-over contact (NO/NC)
Housing styleRectangular
Height65
Sensing modeLight-/dark switching
Housing MaterialPlastic
Ambient temperatureMin.-25-Max.55
Switching frequency20
Switching voltage of OSSD at state "high"264
Rated control supply voltage Us at AC 60HZMin.21.6-Max.264
Voltage typeAC/DC
Wavelength of the sensor660
Light dot size61500
Suitable for safety functionsNo
Degree of protection (NEMA)1
Rail mounting possibleNo
ECOLAB approvedNo
Degree of protection (IP)IP67
Item Code 1MB02
Product Main FamilySensors
