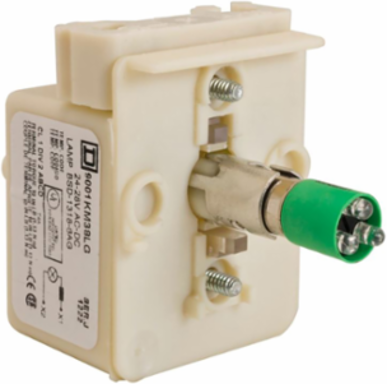

Square D 9001KM38LG Light module, Harmony 9001K, Harmony 9001SK, light block, 30mm, LED green, 120V
Square D 9001KM38LG Light module, Harmony 9001K, Harmony 9001SK, light block, 30mm, LED green, 120V
- MPN: 9001KM38LG
- UPC: 785901300366
- PPN: SCH-9001KM38LG
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$147.22/ EA
Description
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 120 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a green LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or green lens cap. These light modules are UL Listed and CSA certified.
Specifications
Specifications
- Range Of Product
- Harmony 9001K || Harmony 9001SK
- Device Short Name
- 9001K
Product Or Component Typelight module || light block
Bulb BaseBA 9s
Environment
- Product Certifications
- UL listed || CSA || NEMA
- Ambient Air Temperature For Storage
- -40-70 °C || -40-158 °F
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C || -13-158 °F
StandardsUL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C 4520 || JIS C 852
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Light Source
- LED (bulb included)
Light Block Colourgreen
