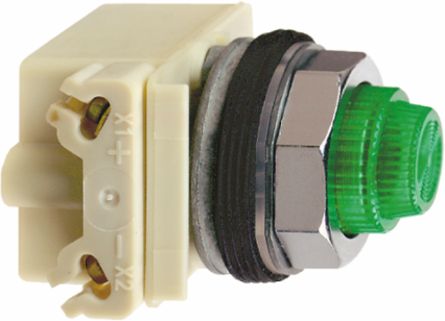

Schneider Electric 9001KP35LGG31 Harmony 9001K Green Pilot Light, 30mm, LED, 24...28V, IP66
- MPN: 9001KP35LGG31
- UPC: 785901032786
- PPN: SCH-9001KP35LGG31
CAD
$235.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric Harmony 9001K Green Pilot Light is an essential component for industrial applications, designed to ensure visibility and reliability in various settings. Featuring a robust 30mm design with an LED light source operating at 24 to 28V, it provides clear and effective signaling. Its IP66 rating indicates excellent resistance against dust and water, making it suitable for demanding environments where safety and performance are critical. This pilot light serves as a dependable indicator that enhances operational efficiency, ensuring you stay informed of system statuses effortlessly.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Cad Overall Depth
- 42 mm
- Cad Overall Width
- 54 mm
Cad Overall Height70 mm
Important Information Attributes
- Certificate Agency
- NEMA, UL 508
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Bezel Material
- chromium plated metal
- Compatibility Code
- 9001K
- Lens Type
- domed plastic
- Light Source
- Green LED
- Operating Position
- any position
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- Yes
- Vibration Resistance
- 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2503027EN
- [Ui] Rated Insulation Voltage
- 250 V 2)IEC 60947-1
- Cap/Operator Or Lens Colour
- green
- Short-circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- Package Weight(Lbs)
- 140.614 g
- Warranty (In Months)
- 18
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Product Kit IdentifierN
Bulb BaseBA 9s
Device Short Name9001K
Light Block Supplydirect 24...28 V AC/DC
Mounting Diameter30 mm
Overvoltage Categoryclass II conforming to IEC 61140
Product Or Component Typepilot light
Range Of ProductHarmony 9001K
Shape Of Screw Headcross slotted
Shock Resistance50 gn IEC 60068-2-27
Tightening Torque0.8-0.8 N.m IEC 60947-1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ith] Conventional Free Air Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531809051
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Nema Degree Of Protection
- NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503027EN
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI2503027EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- pilot light
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC000272
ETIM 9EC000272
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
