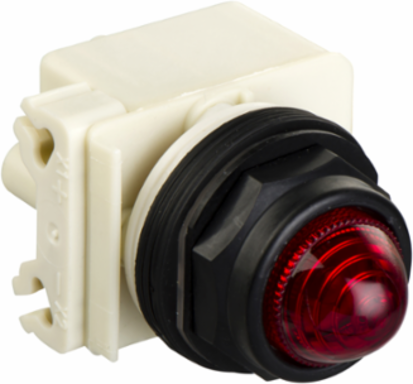

Schneider Electric 9001SKP1R9 Harmony Red Pilot Light, 30 mm, IP66, 110-120V AC
- MPN: 9001SKP1R9
- UPC: 785901820864
- PPN: SCH-9001SKP1R9
CAD
$198.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001SK, red pilot light with transformer and plastic dome is supplied with 110V AC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001SK
- Product Or Component Type
- pilot light
- Device Short Name
- 9001SK
Light Block Supplyvia integral transformer 120 V AC 50/60 Hz 6 V)
Lens Typedomed plastic
Complementary
- [Us] Rated Supply Voltage
- 110...120 V
- [Us] Rated Supply Voltage
- 110...120 V AC 50/60 Hz
- [Ui] Rated Insulation Voltage
- 250 V 2)EN/IEC 60947-1
- Lens Material
- polycarbonate
- Mounting Diameter
- 30 mm
- Operating Position
- any position
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- Cap/Operator Or Lens Colour
- red
- Cad Overall Width
- 54 mm
- Net Weight
- 0.181 kg
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-1
- Cad Overall Height
- 70 mm
- Bulb Base
- BA 9s
- Lens Type
- domed
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Light Sourceincandescent
Bezel Materialplastic
Light Sourceincandescent bulb
Light Block Supplyvia integral transformer
[Ith] Conventional Free Air Thermal Current10 A
Shape Of Signaling Unit Headround
Tightening Torque0.8-0.8 N.m EN/IEC 60947-1
Cad Overall Depth42 mm
Shape Of Screw Headcross slotted
Size30 mm
Supply Frequency50...60 Hz
Device Presentationcomplete product
Environment
- Product Certifications
- UL 508 || NEMA
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Shock Resistance
- 50 gn IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 852 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710019EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710019EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
