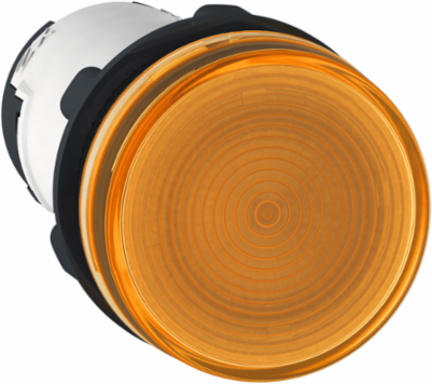

Schneider Electric XB7EV78P Harmony XB7 Round Pilot Light 22 mm, Orange, 230 V, IP54
- MPN: XB7EV78P
- PPN: SCH-XB7EV78P
CAD
$444.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB7, monolithic orange pilot light is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via BA9s base, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant thanks to its IP54, making it ideal for operation in low pressure environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- with plain lens
- Light Source
- incandescent
- Product Or Component Type
- pilot light
- Sale Per Indivisible Quantity
- 10
Range Of ProductHarmony XB7
Mounting Diameter22 mm
Device Presentationmonolithic product
Device Short NameXB7
Complementary
- Height
- 29 mm
- Fixing Center
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Cap/Operator Or Lens Colour
- orange
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Service Life
- 2000 h at rated voltage and 25 °C
- Signalling Type
- steady
- Supply Voltage Limits
- 195-264 V AC
- Width
- 29 mm
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Device Mounting
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
- Bulb Base
- BA 9s
Terminals Description Iso N°1(X1-X2)PL
Light Block Supplydirect through resistor <2.6 W 130 V
Shape Of Signaling Unit Headround
Net Weight0.02 kg
Connections - TerminalsFaston connectors 6.35 x 0.8 mm IEC 60947-1 || forked type tag connectors 6.5 mm IEC 60947-1 || screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
Overvoltage Categoryclass II IEC 60536
Compatibility CodeXB7
Depth54 mm
Shape Of Screw Headcross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
[Us] Rated Supply Voltage230 V AC 50/60 Hz
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Electromagnetic Compatibility
- disturbing field emission class B conforming to IEC 55011
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
StandardsJIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || JIS C8201-1
Shock Resistance50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP20 IEC 60529 rear face) || IP54 IEC 60529 front face)
Nema Degree Of ProtectionNEMA 12
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1805012EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1805012EN
