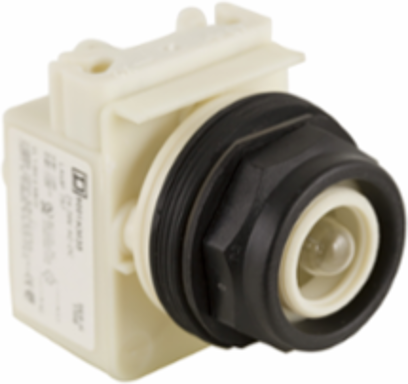

Square D 9001SKP8 Pilot Light Head, 30 mm Size, Incandescent, 277V, IP66
- MPN: 9001SKP8
- UPC: 785901752158
- PPN: SCH-9001SKP8
CAD
$182.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric Pilot Light Head is engineered for reliability and visibility in various automation and control applications. With a 30 mm size and incandescent illumination rated for 277V, this component ensures clear signaling even in demanding environments. Its robust IP66 rating certifies that it offers protection against dust and water, making it suitable for both indoor and outdoor use. This combination of durability and performance makes it an essential component for industrial control systems, effectively alerting users to operational statuses within various settings.
Documentation & Downloads
Specifications
Additional
- Voltage
- 277 V AC 50/60 Hz
- Thermal Current
- 10 A
- Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-1
- Size
- 30 mm
- Overall Dimensions
- 2.13 in (W) x 2.76 in (H) x 1.65 in (D)
- Bulb Base
- BA 9s
- Bezel Material
- plastic
- Cap/Operator or Lens Colour
- without cap
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Operating Position
- any position
- NEMA Degree of Protection
- NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
- Protective Treatment
- TC
- Shock Resistance
- 50 gn IEC 60068-2-27
- Ambient Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Product Certifications
- NEMA, UL 508
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710019EN
- Range Of Product
- Harmony 9001SK
- Country of Origin
- Mexico
Short-Circuit Protection10 A cartridge fuse EN/IEC 60947-5-1
Rated Insulation Voltage250 V EN/IEC 60947-1
Supply Frequency50...60 Hz
Mounting Diameter30 mm
Net Weight0.181 kg
Light Sourceincandescent bulb
Shape of Signaling Unit Headround
Tightening Torque0.8 N.m EN/IEC 60947-1
Shape Of Screw Headcross slotted
IP Degree of ProtectionIP66 IEC 60529
Electrical Shock Protection ClassClass II IEC 61140
Vibration Resistance7 gn 2-500 Hz IEC 60068-2-6
Ambient Temperature for Operation-25 to 70 °C (-13 to 158 °F)
StandardsJIS C 852, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-5-1, UL 508, JIS C8201-1
Reach Free Of SVHCYes
Toxic Heavy Metal FreeYes
China Rohs RegulationX
Circularity ProfileENVEOLI1710019EN
Device Short Name9001SK
Sustainable Offer StatusGreen Premium product
