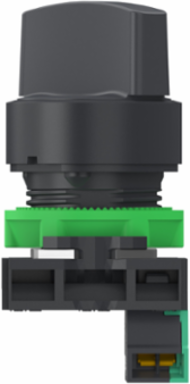

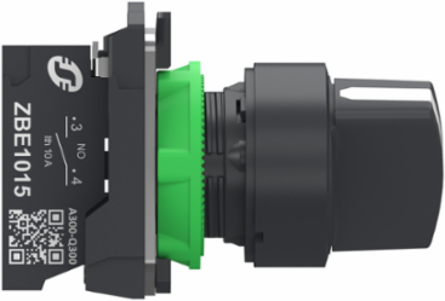

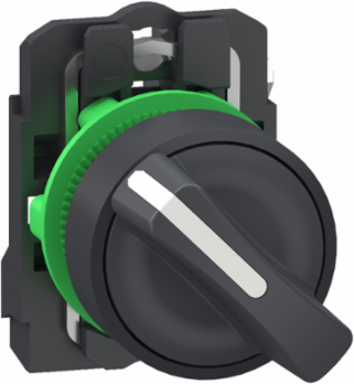

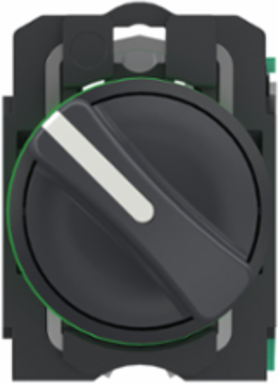

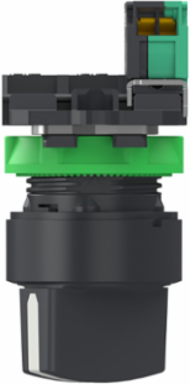

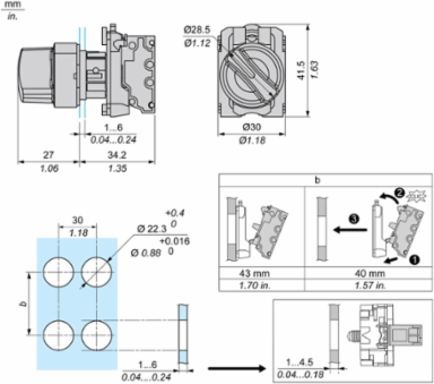

Schneider Electric XB5AD415 Selector switch, Harmony XB5, plastic, black, 22mm, 2 positions, spring return from right to left, 1 NO, compact push in
Schneider Electric XB5AD415 Selector switch, Harmony XB5, plastic, black, 22mm, 2 positions, spring return from right to left, 1 NO, compact push in
- MPN: XB5AD415
- PPN: SCH-XB5AD415
- UNSPSC: 39122217
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$54.68/ EA
Description
This Harmony XB5 modular black selector switch has 2 positions and operates with a spring-return-to-left mechanism. This plastic selector switch provides an ergonomic interface for controlling your machines. It is supplied with a standard handle and weighs 47g. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact-resistant, dust-resistant, water and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. This selector switch is equipped with 1 normally open (NO) contact, featuring a slow break operation. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
Specifications
Conformance Attributes
- Standards
- IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, UL 60947-1, UL 60947-5-1, UL 60947-5-5, UL 1059, UL 486E, CSA C22.2 No 60947-1, CSA C22.2 No 60947-5-1, CSA C22.2 No 158, CSA C22.2 No 65, IACS E10
Complementary Attributes
- IE Rated Operational Current
- 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
- UIMP Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
UI Rated Insulation Voltage300 V 3)IEC 60947-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 0
- Vibration Resistance
- 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- Carbon Footprint Of The Distribution Phase A4
- 0.0064074956, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.016686198, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0.1 kg CO2 eq., 0.08074
- Local Data Status
- Publishable
- Pre Comm Date
- 2024-05-23
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308008EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- WD Status
- L - LOB initialized
- Function Option
- Standard
- Compatibility Code
- XB5
- Device Short Name
- XB5
- Head Type
- standard
- Operator Position Information
- 2 positions 90°
- Package Weight Lbs
- 39 g
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Short Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1

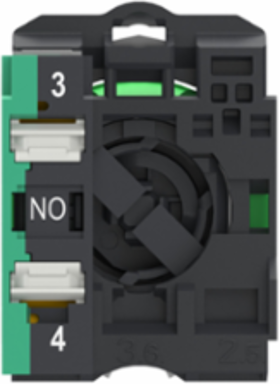

- Terminals Description ISO N 1
- (13-14)NO
- Total Lifecycle Carbon Footprint
- 0.5 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Relationship Type
- Assembly relationship
- Pep Verification Date
- 2023-08-01
- PSR Version
- PSR-0005-ed2-2016 03 29
- Functional Unit Description
- This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Product Kit Identifier
- N
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Shock Resistance25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
IE Rated Operational Current6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0860763627
Carbon Footprint Of The Manufacturing Phase A1 To A30.3 kg CO2 eq., 0.3336683611
Connections Terminalspush-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Local Publishable Date2026-01-12
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function Option IdSTANDARD
Bezel Materialdark grey plastic
Contacts Usagestandard contacts
Electrical Shock Protection Classclass II conforming to IEC 60536
Mounting Diameter22.5 mm
Operator Profileblack standard handle
Positive Openingwithout
Product Or Component Typeselector switch
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Shape Of Signaling Unit Headround
Sustainable PackagingNo
Torque Value0.14 N.m NO changing electrical state
Type Of Operatorright to left spring return
ITH Conventional Free Air Thermal Current10 A IEC 60947-5-1
Pep CodeENVPEP2308008EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit UnitUnit
Product ManagerSU-JIN NG
Environment Attributes Main
- EU ROHS Directive
- Compliant?, Compliant
- Nema Degree Of Protection
- NEMA 13, NEMA 4X
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.5235784174
- Environmental Disclosure
- ENVPEP2308008EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- PSR Version
- PSR-0005-ed2-2016 03 29
IP Degree Of ProtectionIP66 IEC 60529, IP67, IP69, IP69K
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308008EN
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP2308008EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- selector switch
Range Of ProductHarmony XB5
Overview Attributes
- Device Presentation
- complete product
