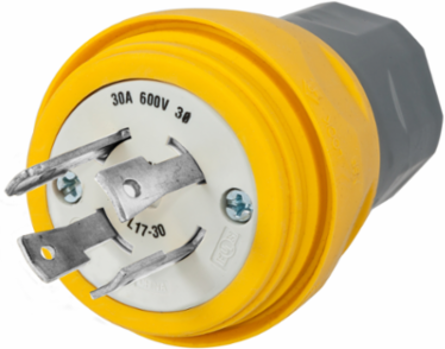

Hubbell Wiring Device-Kellems HBL28W77 Watertight Twist-Lock Plug 30A 600V NEMA L17-30P Yellow
- MPN: HBL28W77
- UPC: 783585131740
- PPN: HBL-HBL28W77
- UNSPSC: 39121402
CAD
$96.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Plug, 30A, 3 Phase 600V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L17-30P, Yellow
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.77 in x 2.77 in x 3.94 in
- Industry Standard(s)
- Meets NEMA WD-1, WD-6 And ANSI Standards
- Performance
- Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous;Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
- Amperage Rating
- 30 A
- NEMA Rating
- L17-30P
- Number of Wires
- 3-Wire
- Standard
- Meets NEMA WD-1, WD-6 And ANSI Standards
- Voltage Rating
- 3 Phase 600 VAC
- Voltage Rating Description
- 3 Phase 600 VAC
- Engineering Drawing 1 Display Text
- HBL28W77 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Nema Rating
- L17-30P
- Number Of Wires
- 3-Wire
- Description - Invoice
- PLUG, W/TIGHT, 3P 30A 600V, L17-30P, YL
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A116
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.200 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- NAICS Code
- 335931A102
Current / Amperage Rating30 A
Height3.94 in
Length2.77 in
Standards - RoHS Compliance StatusCM
ColorYellow
Number of Poles3-Pole
Size2.77 in x 2.77 in x 3.94 in
TypePlugs
Wire SizeMin Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Width2.77 in
General Literature Asset 1 Display TextWatertight Wiring Devices
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Number Of Poles3-Pole
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number28W77H
Cord Diameter0.385-0.930 in
BOX SIZE7.100x18.200x9.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585131740
Case Weight8.350 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
