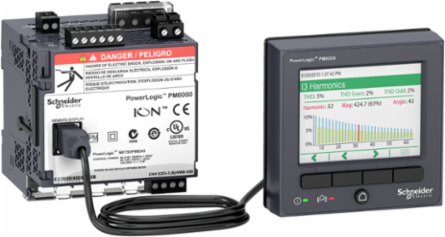

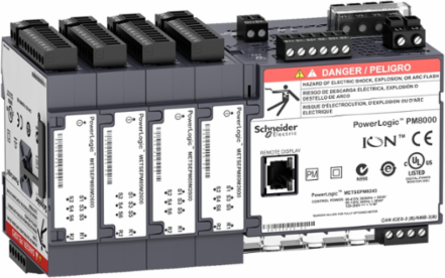

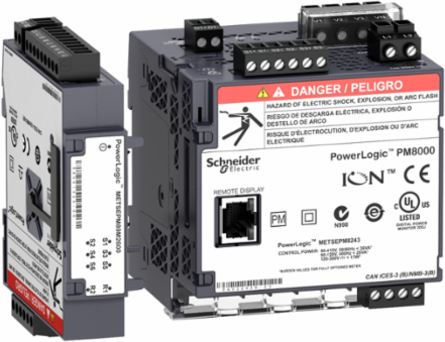

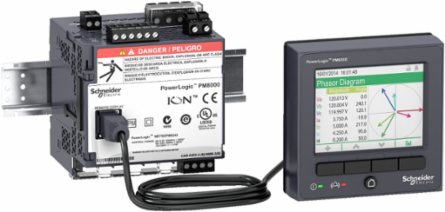

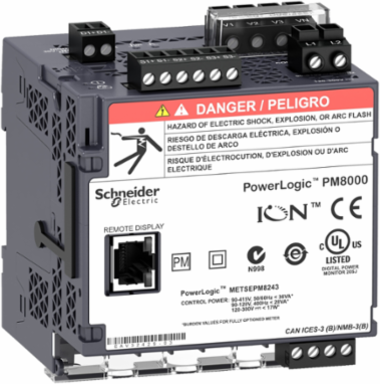

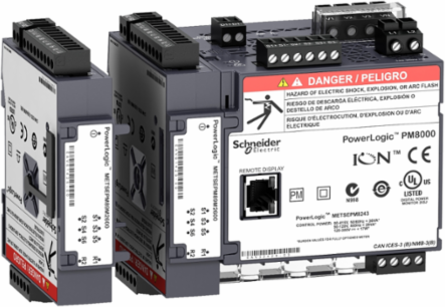

Schneider Electric METSEPM8244 PowerLogic PM8000 Power Quality Meter, 512 MB, 256 Samples/Cycle
- MPN: METSEPM8244
- PPN: SCH-METSEPM8244
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerLogic PM8000 Power Quality Meter, 512 MB, 256 Samples/Cycle
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, France, Mexico, Singapore, United States, ZZ
Depth90.8 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004
- Communication Network Type
- IPv6 (internet protocol)
Communication ServiceSMTP e-mail notification, RSTP support, NTP time synchronization, DHCP, PTP time synchronization
Communication Port SupportETHERNETscrew terminal block RS485
Complementary Attributes
- Line Rated Current
- 10 A, 5 A, 1 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cybersecurity
- password protection, Syslog protocol support, port hardening, robust security logs, enable/disable communication ports
- Device Application
- WAGES metering, power monitoring
- Information Displayed
- voltage, current, frequency, power, energy consumption, harmonic distortion
- Market Segment
- buildings large building network management: main incomerbuildings large building network management: sub feederbuildings multi-site network management: sub feederdata center network management: sub feederhealthcare network management: sub feederindustry network management: sub feederbuildings large building cost management: billing: sub feeder, buildings small building network management: main incomer, buildings medium building network management: main incomer, buildings multi-site network management: main incomer, data center network management: main incomer, healthcare network management: main incomer, industry network management: main incomer, utility: sub feeder
- Mounting Mode
- flush-mounted, clip-on
- Number Of Poles
- 3P, 1P + N, 3P + N
- Type Of Measurement
- apparent power per phase, rmspower factor per phase, rmscurrent, voltage, frequencyactive and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms
- Certificate Agency
- CE, cULus, N998
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2.6724437888584474, 3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 145 kg CO2 eq., 144.76856377439307
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310058EN_Web.pdf, PLSED310058EN
- Local Publishable Date
- 2025-09-08
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2508020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2345
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- PM8244
- Display Type
- remote LCD display
- Frequency Measurement Range
- 42-69 Hz
- Measurement Current
- 50-10000 mA
- Memory Capacity
- 512 MB
- Power Consumption In Va
- 16 VA 230 V AC
- Product Name
- PowerLogic PM8000
- Provided Equipment
- remote display
- Returnability
- Yes
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 347 kg CO2 eq.
- Pep Code
- ENVPEP2508020EN
- Pep Verification Date
- 2025-09-15
- Psr Version
- PSR-0005-ed3-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Canada, CA
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 17
- Width Nominal
- 90.5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Data Recordingsequence of event recording, event logs, min/max of instantaneous values, harmonics logs, alarm logs, GPS synchronisation, waveform logs, data logs, time stamping, trending/forecasting, sag and swell logs, 50 data recorders
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand conforming to IEEE C37.90.1
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Measurement Accuracycurrent +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 %
Network Frequency50 Hz, 60 Hz
Power Quality AnalysisEN 50160 2010 compliance reportIEEE 519 2014 compliance report, IEC 61000-4-30 class S power quality measurement, up to the 63rd harmonic, harmonic distortion, waveform capture, voltage sag and swell detection, programmablity (logic and math functions)IEC 62586 power quality monitoring, disturbance direction detection, rapid voltage change
Web Servicescustomizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
Carbon Footprint Of The Distribution Phase [A4]0.5635352070044256, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.03660059186126195
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]199 kg CO2 eq., 199.2820090070477
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionDPIBS
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier1
Function OptionStandard
Compatibility CodePM8244
Display Resolution320 x 240 pixels QVGA
Energy Efficiency OptimizedFalse
Installation CategoryIII
Measurement Voltage57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases
Mounting SupportDIN rail meter deviceframework remote display
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typepower meter
RangePowerLogic
Sampling Rate256 samples/cycle
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTechnical data:& 10Supply Voltage& 1090...415 V AC 45...65 Hz +/- 10 %& 10110...415 V DC +/- 10 %& 10Measurement voltage& 1057…400 V AC 42...69 Hz between phase and neutral& 10100…690 V AC 42...69 Hz between phases& 10Measurement current& 1050…10000 mA
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh414.348
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal90.5 mm
[Us] Rated Supply Voltage90...415 V AC 45...65 Hz +/- 10 %110...415 V DC +/- 10 %
Package Weight(Lbs)1.305 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 347.3231523691649
- Circularity Profile
- ENVEOLI2508020EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- No
- Recyclability
- Product designed for enhanced end-of-life management and recycling
- Pep Code
- ENVPEP2508020EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP2508020EN
Ip Degree Of ProtectionIP30 conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Relative Humidity5-95 %
Pep Verification Date2025-09-15
Psr VersionPSR-0005-ed3-2023 12 08
General Attributes
- Product Or Component Type
- power meter
Provided Equipmentremote display
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 1 pulse
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm)current (impedance 0.3 mOhm)
Number Of Inputs3 digital 30 V AC3 digital 60 V DC
Batteries & Runtime Attributes
- Removable Battery
- No
