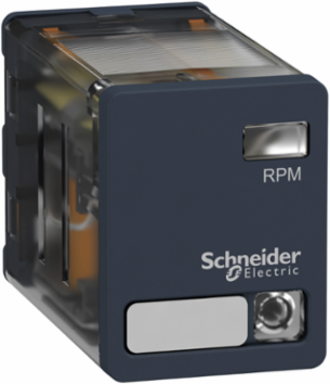

Schneider Electric RPM23F7 Harmony Plug-In Relay, 15A, 2 C/O, LED, 120V AC, IP40
Schneider Electric RPM23F7 Harmony Plug-In Relay, 15A, 2 C/O, LED, 120V AC, IP40
- MPN: RPM23F7
- PPN: SCH-RPM23F7
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$22.55/ EA
Description
This Power Plug-In Relay reflects Schneider Electric expertise in relay since 1924 by helping to reduce the size of enclosures and at the same time increasing machine reliability. It has large choice of number of contacts for high rated current use Its rated current is 15 A, is controlled with a 120 V AC circuit and has a latching of 2 C/O. They are intendedfor industrial machines, packaging, textile, heating, ventilation and air conditioning system.
Specifications
Environment
- Product Certifications
- CSA || UL || EAC
- Ambient Air Temperature For Operation
- -40-55 °C
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Ip Degree Of Protection
- IP40 EN/IEC 60529
StandardsCSA C22.2 No 14 || UL 508 || EN/IEC 61810-1
Dielectric Strength1500 V AC between contacts micro disconnection || 2000 V AC between coil and contact reinforced || 2000 V AC between poles basic
Shock Resistance15 gnin operation || 30 gnnot operating
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environmental DisclosureENVPEP1406038EN
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Maximum Switching Capacity
- 3750 VA || 420 W
- Operating Rate
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Test Levels
- level A group mounting
- Contacts Material
- AgNi
- Shape Of Pin
- flat
- Net Weight
- 0.036 kg
- Average Resistance
- 4430 Ohm 20 °C +/- 15 %
- Rated Operational Voltage Limits
- 96...132 V AC
- [Ie] Rated Operational Current
- 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
- Mechanical Durability
- 10000000 cycles
- Operating Time
- 20 ms at nominal voltage
- Drop-Out Voltage Threshold
- >= 0.15 Uc AC
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Safety Reliability DataB10d = 100000
Protection CategoryRT I
Electrical Durability100000 cycles resistive
Average Coil Consumption In Va1.1 60 Hz
Reset Time20 ms at nominal voltage
Maximum Switching Voltage250 V IEC
Device Presentationcomplete product
Pollution Degree3
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Operating Positionany position
Load Current15 A 250 V AC || 15 A 28 V DC
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
Specifications
- Utilisation Coefficient
- 20 %
- Range Of Product
- Harmony Electromechanical Relays
- Status Led
- with
- Series Name
- Power
- Device Short Name
- RPM
[Uc] Control Circuit Voltage120 V AC 50/60 Hz
Product Or Component Typeplug-in relay
Control Typewithout lockable test button
Contacts Type And Composition2 C/O
[Ithe] Conventional Enclosed Thermal Current15 A -40-55 °C
