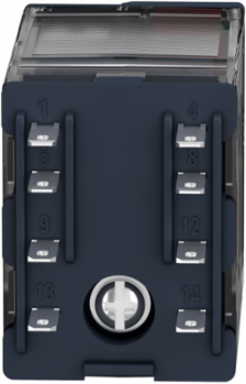

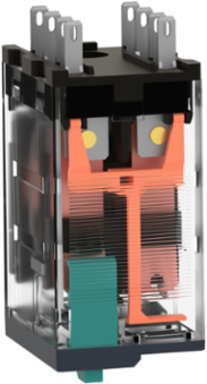

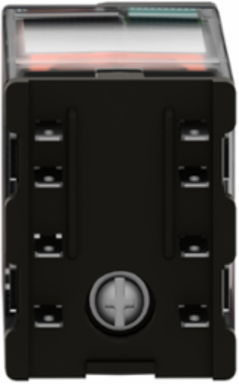

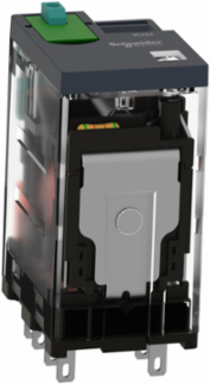

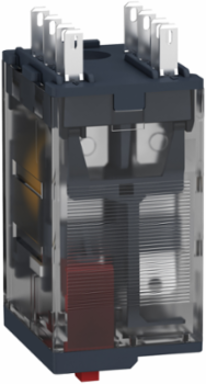

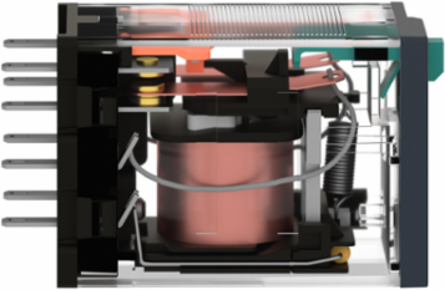

Schneider Electric RXM2AB2F7 Miniature Plug-in Relay 12A 2 C/O 120V AC with LED

MPN: RXM2AB2F7
PPN: SCH-RXM2AB2F7

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$16.00

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

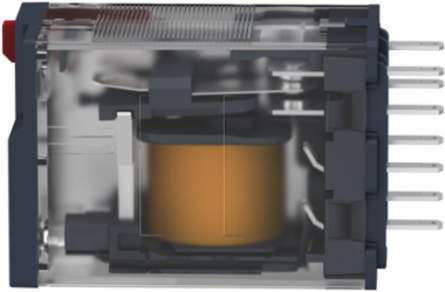

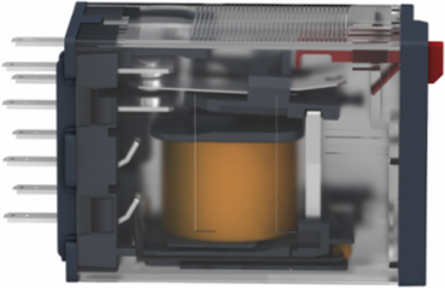

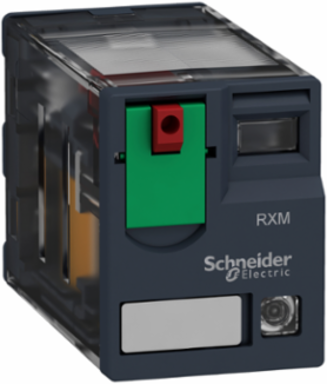

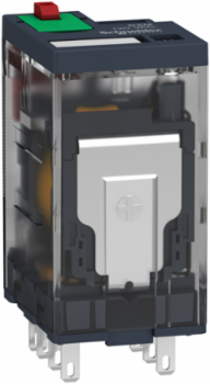

Miniature Plug-in Relay 12A 2 C/O 120V AC with LED

Features

The Schneider RXM2AB2F7 is a high-performance miniature plug-in relay from the Zelio RXM range. Its compact design allows for high-density mounting on DIN rails, making it the perfect solution for Canadian industrial control panels and automation systems where cabinet space is at a premium but reliable switching is required.
The "F7" suffix indicates a 120V AC (50/60 Hz) control coil. This is the most common control voltage in North American industrial environments, allowing the relay to be triggered directly by push-buttons, limit switches, or 120V PLC outputs without the need for additional voltage conversion.
This relay features 2 C/O (Double Pole Double Throw) contacts, allowing you to switch two independent circuits at once. With a 12 Amp thermal current rating, it can handle both power loads such as small motors and heaters and logic signals, providing versatile "Form C" switching for complex automation sequences.

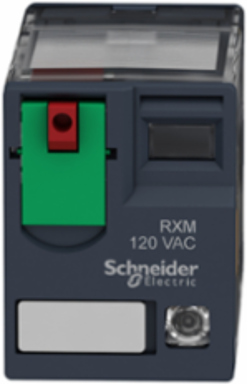

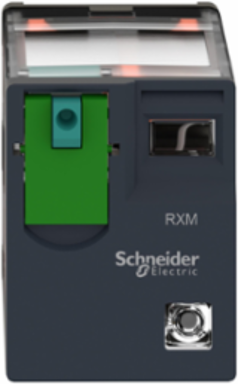

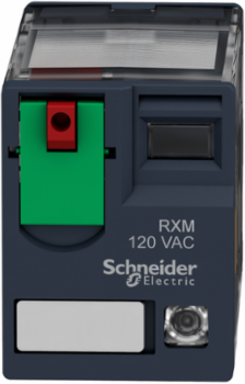

The RXM2AB2F7 is equipped with a lockable "test button" and a mechanical flag indicator. This allows maintenance technicians to manually override the relay for testing purposes and see at a glance whether the relay is energized, significantly reducing troubleshooting time during system commissioning or downtime.
For added convenience, this model includes a built-in Green LED, which illuminates when the coil is energized. This clear visual feedback is essential for technicians working in busy manufacturing environments, allowing them to verify the status of the control logic from across the plant floor.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, Indonesia, Singapore, United States, ZZ

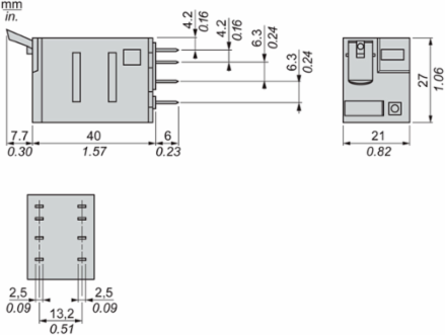

Physical Attributes

Cad Overall Depth	78.45 mm

Cad Overall Height	79 mm

Complementary Attributes

Control Circuit Type	AC
Maximum Switching Capacity	3000 VA/336 W
Minimum Switching Capacity	170 mW 10 mA, 17 V

Line Rated Current	12 A
Maximum Switching Voltage	250 V IEC
Rated Operational Voltage Limits	96...132 V AC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Type	lockable test button, lockable test button
Operating Rate	<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Certificate Agency	UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
[Uc] Control Circuit Voltage	AC 50/60 Hz, 120 V
Carbon Footprint Of The Distribution Phase [A4]	0.0047738385, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0002262618
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	23 kg CO2 eq., 22.8090282589
Local Publishable Date	2026-03-26
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2106019EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Coil Consumption In Va	1.2-1.2 60 Hz
Average Resistance	4430 Ohm 20 °C +/- 15 %
Contacts Material	AgNi
Electrical Durability	100000 cycles resistive
Mechanical Durability	10000000 cycles
Operating Time	20 ms
Product Or Component Type	plug-in relay
Range Of Product	Harmony Electromechanical Relays
Reset Time	20 ms
Safety Reliability Data	B10d = 100000

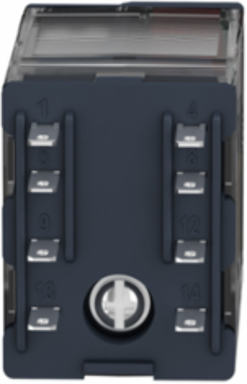

Shape Of Pin	flat (faston type)
Software Version	EIME v5.9.1
Test Levels	level A group mounting
Utilisation Coefficient	20 %
Control Circuit Voltage	120 V
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: China
Energy Model - Use [B6]	Electricity mix; AC; 120V; US
Recyclability Potential In %	55
[Uimp] Rated Impulse Withstand Voltage	4 kV 1.2/50 µs
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Dielectric Strength	1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
Status Led	with, with
[Ie] Rated Operational Current	6 A 250 V AC) NC IEC12 A 28 V DC) NO IEC12 A 250 V AC) NO IEC6 A 28 V DC) NC IEC, 12 A 28 V DC) UL, 12 A 277 V AC) UL
[Ui] Rated Insulation Voltage	250 V IEC300 V CSA, 300 V UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0048399687, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.3 kg CO2 eq., 0.2927376966
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Consumption	1.2 VA 60 Hz
Compatibility Code	RXM
Contacts Type And Composition	2 C/O
Load Current	12 A 250 V AC12 A 28 V DC
Operating Position	any position
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT I
Relay Type	miniature relay
Returnability	Yes
Series Name	RXM series
Shock Resistance	10 gnin operation30 gnnot operating
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	23 kg CO2 eq.
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Pep Code	ENVPEP2106019EN
Pep Verification Date	2021-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; 120V; US
[Ithe] Conventional Enclosed Thermal Current	12 A
Drop-out Voltage Threshold	>= 0.15 Uc>= 0.15 Uc
Package Weight(Lbs)	37.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Operation	-40-55 °C-40-55 °C
Environmental Disclosure	ENVPEP2106019EN
Ip Degree Of Protection	IP40 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2021-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	23.1116060246
Circularity Profile	ENVEOLI2106019EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2106019EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
