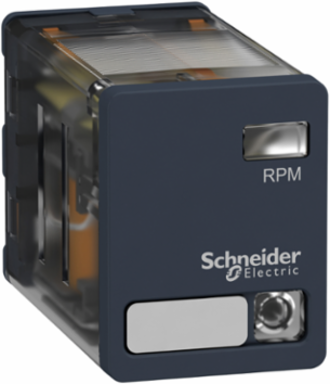

Schneider Electric RPM23BD Power Relay 15A 2 C/O with LED and 24V DC Control
- MPN: RPM23BD
- PPN: SCH-RPM23BD
CAD
$22.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Power Plug-In Relay reflects Schneider Electric expertise in relay since 1924 by helping to reduce the size of enclosures and at the same time increasing machine reliability. It has large choice of number of contacts for high rated current use Its rated current is 15 A, is controlled with a 24 V AC circuit and has a latching of 2 C/O. They are intendedfor industrial machines, packaging, textile, heating, ventilation and air conditioning system.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Complementary Attributes
- Maximum Switching Capacity
- 3750 VA, 420 W
- Line Rated Current
- 15 A
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Control Circuit TypeDC
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits19.2...26.4 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- without lockable test button, without lockable test button
- Operating Rate
- <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
- Contacts Composition
- 2 C/O
- [Ie] Rated Operational Current
- 15 A 28 V DC) NO IEC7.5 A 28 V DC) NC IEC, 15 A 277 V AC) UL15 A 28 V DC) UL, 15 A 250 V AC) NO IEC7.5 A 250 V AC) NC IEC
- [Ui] Rated Insulation Voltage
- 250 V IEC300 V CSA, 300 V UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0046448205, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0001171533, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 12 kg CO2 eq., 12.1271755152
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVPEP2506026EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 0.85 W
- Compatibility Code
- RPM
- Contacts Type And Composition
- 2 C/O
- Load Current
- 15 A 250 V AC15 A 28 V DC
- Mounting Support
- plug-in
- Operating Time
- 20 ms at nominal voltage
- Product Or Component Type
- plug-in relay
- Range Of Product
- Harmony Electromechanical Relays
- Reset Time
- 20 ms at nominal voltage
- Safety Reliability Data
- B10d = 100000
- Shape Of Pin
- flat (faston type)
- Software Version
- EIME 5.7.0.2
- Test Levels
- level A group mounting
- Utilisation Coefficient
- 20 %
- Control Circuit Voltage
- 24 V
- Database Version
- 2018-03
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
- Functional-unit Unit
- unité (unit)
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Recyclability Potential In %
- 68
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs
- Package Weight(Lbs)
- 37.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced2000 V AC between poles with basic
Status Ledwith, with
Certificate AgencyEAC, UL, CSA
[Uc] Control Circuit VoltageDC, 24 V
Drop-out Voltage Threshold>= 0.1 Uc DC, >= 0.1 Uc DC>= 0.1 Uc DC, >= 0.1 Uc DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0048275085
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.3444757663
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance640 Ohm at 20 °C +/- 10 %
Contacts MaterialAgNi
Electrical Durability100000 cycles resistive
Mechanical Durability10000000 cycles
Operating Positionany position
Product AvailabilityStock - Normally stocked in distribution facility
Protection CategoryRT I
Relay Typepower relay
ReturnabilityYes
Series NameRPM series
Shock Resistance15 gnin operation30 gnnot operating
Sustainable PackagingYes
Total Lifecycle Carbon Footprint12 kg CO2 eq.
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Pep CodeENVPEP2506026EN
Pep Verification Date2018-05-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; <lt/> 1kV; EU-27
[Ithe] Conventional Enclosed Thermal Current15 A -40-55 °C
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Environmental Disclosure
- ENVPEP2506026EN
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2018-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint12.4812407638
Circularity ProfileENVPEP2506026EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2506026EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
