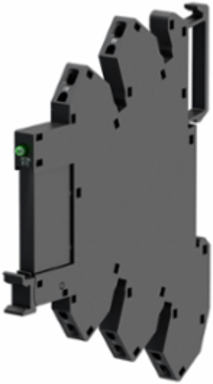

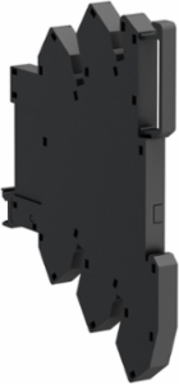

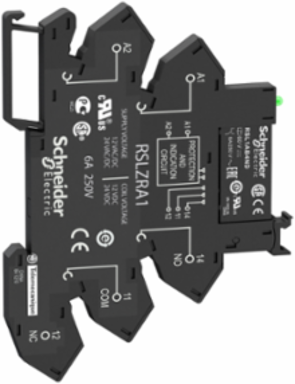

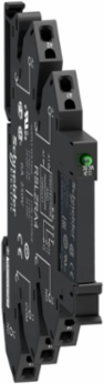

Schneider Electric RSL1PRJU Slim Interface Relay, 6A, 1 C/O, 12V AC/DC, IP40, 6mm Width
- MPN: RSL1PRJU
- PPN: SCH-RSL1PRJU
CAD
$23.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RSL slim, pre-assembled plug-in relay and socket features a 12VAC/DC coil control voltage. It includes one changeover contact (SPDT-single pole, double throw) with a current rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimmest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, Spain, France |
|---|
| Depth | 101 mm |
|---|
Complementary Attributes
| Maximum Switching Capacity | 1500 VA, 150 W |
|---|---|
| Line Rated Current | 6 A |
| Minimum Switching Capacity | 120 mW |
| Minimum Switching Voltage | 12 V |
| Control Circuit Type | AC/DC |
|---|---|
| Maximum Switching Voltage | 277 V |
| Minimum Switching Current | 100 mA |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Operating Rate | <= 72000 cycles/hour no-load, <= 72000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load<= 72000 cycles/hour no-load, <= 72000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load |
| Connections Terminals | spring terminals |
| [Uc] Control Circuit Voltage | AC/DC, 12 V |
| Terminals Description Iso N°1 | (A1-A2)CO, (11-12-14)OC, (A1-A2)CO, (11-12-14)OC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.06702982359148825, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.3 kg CO2 eq., 0.29378451711073206 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Coil Consumption | 0.17 W, DC |
| Clamping Force | 10-40 N |
| Contact Operation | standard |
| Contacts Material | silver alloy (AgSnO2) |
| Control Type | without lockable test button |
| Electrical Durability | 60000 cycles resistive, 6 A 250 V, AC-1 |
| Load Current | 6 A 250 V AC 0.5 mm mounting distance |
| Mechanical Durability | 10000000 cycles |
| Operating Position | any position |
| Product Or Component Type | pre-assembled plug-in relay with socket |
| Range Of Product | Harmony Electromechanical Relays |
| Returnability | No |
| Sale Per Indivisible Quantity | 10 |
| Shape Of Pin | flat (PCB type) |
| Software Version | v6.3.0.1-4 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 3 kg CO2 eq. |
| Input Voltage 9 Input Voltage | 12 V |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | RSL Interface plug-in Relay has large choice of number of contacts for high rated current use.It helps to reduce the size of enclosures and increases machine reliability and you can mount nearly everywhere. One of the slimiest interface relay on the market with 6mm width and it can be installed nearly anywhere and this product is assembled with socket. Easy installation and withdrawal the relay from its socket. It is compatible with high breaking capacity or low-level current application requirements. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; China, CN |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Global, GLO |
| Recyclability Potential In % | 41 |
| Width Nominal | 6.2 mm |
| [Ithe] Conventional Enclosed Thermal Current | 6 A -40-55 °C |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536410020 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Operating Time | 5 ms reset, 12 ms |
| Certificate Agency | CSA, UL, GOST |
| Connections - Terminals | spring terminals, spring terminals, 1 x 0.2...1 x 1.5 mm² 24 AWG...16 AWG) flexible with cable endspring terminals, 1 x 0.2...1 x 1.5 mm² 24 AWG...16 AWG) solid without cable end |
| Carbon Footprint Of The Distribution Phase [A4] | 0.016233115683300086, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | kg CO2 eq., 0 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 2 kg CO2 eq., 2.1558136163828285 |
| Local Publishable Date | 2026-05-29 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2506033EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2353 |
| China Rohs In Scope | Yes |
| Phenolic Free Solution | Yes |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Resistance | 848 Ohm DC 23 °C +/- 10 % |
| Compatibility Code | RSL |
| Contact Terminal Arrangement | separate |
| Contacts Type And Composition | 1 C/O |
| Dielectric Strength | 1000 V AC between contacts4000 V AC between coil and contact |
| Fixing Mode | plastic compression spring |
| Marking | CE |
| Mounting Support | 35 mm symmetrical DIN rail |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protection Category | RT III |
| Relay Type | slim interface relay |
| Safety Reliability Data | B10d = 60000 |
| Series Name | RSL series |
| Shock Resistance | 10 gn 11 ms) in operation IEC 60068-2-275 gn 11 ms) not operating IEC 60068-2-27 |
| Status Led | with |
| Test Levels | level A group mounting |
| Vibration Resistance | 10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-65 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6 |
| Pep Code | ENVPEP2506033EN |
| Pep Verification Date | 2025-06-30 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 78.6 mm |
| [Ie] Rated Operational Current | 6 A 1 C/O AC-1/DC-1)IEC/UL |
| [Ui] Rated Insulation Voltage | 250 V IEC277 V cUL |
| Drop-out Voltage Threshold | >= 0.05 Uc>= 0.05 Uc |
| Package Weight(Lbs) | 31 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Carbon Footprint | 2.5328610727683487 |
| Circularity Profile | ENVEOLI2506033EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2506033EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Toxic Free | Yes |
| Ambient Air Temperature For Operation | -40-55 °C-40-55 °C |
| Environmental Disclosure | ENVPEP2506033EN |
| Ip Degree Of Protection | IP40 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-06-30 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | pre-assembled plug-in relay with socket |
|---|
| Range Of Product | Harmony Electromechanical Relays |
|---|
ETIM
| ETIM 8 | EC001437 |
|---|
| ETIM 9 | EC001437 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage | 12 V AC/DC 11.4...14.4 V) |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
