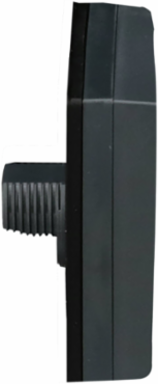

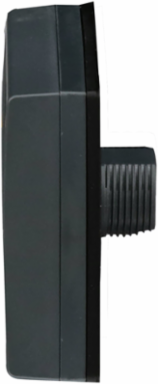

Schneider Electric METSEPM5563RD PowerLogic PM5563 Energy Meter, 1A/5A, 63rd Harmonic, 1.1MB Memory

  • MPN: METSEPM5563RD
  • PPN: SCH-METSEPM5563RD
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2645.68

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    PowerLogic PM5563 Energy Meter, 1A/5A, 63rd Harmonic, 1.1MB Memory

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Costa Rica, France, India, Mexico, Singapore, United States

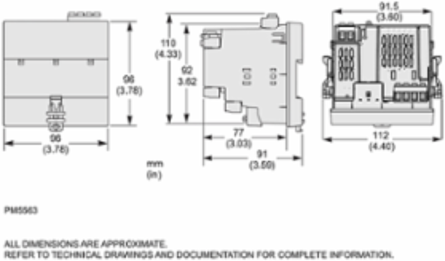

    Depth72 mm

    Communications & Management Attributes

    Communication Port Protocol
    Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V, JBUSModbus TCP/IP 10/100 Mbit/s 2500 V, Ethernet Modbus TCP/IP daisy chain, BACnet IP, DNP3 over ethernet
    Communication Gateway
    Ethernet/serial
    Communication Port SupportRS485, ETHERNET

    Complementary Attributes

    Line Rated Current
    1 A, 5 A
    Maximum Power Consumption In Va16 VA 480 V

    Important Information Attributes

    Data Recording
    time stamping, data logs, maintenance logs, event logs, alarm logs, min/max of instantaneous values
    Electromagnetic Compatibility
    limits for harmonic current emissions class A conforming to IEC 61000-3-2, conducted RF disturbances level 3 conforming to IEC 61000-4-6, magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted and radiated emissions class B conforming to EN 55022limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3, electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4surge immunity test level 4 conforming to IEC 61000-4-5voltage dips and interruptions immunity test conforming to IEC 61000-4-11
    Market Segment
    buildings medium building cost management: billing: sub feederbuildings large building cost management: billing: sub feederbuildings multi-site cost management: billing: sub feederdata center cost management: billing: sub feederhealthcare cost management: billing: sub feederindustry cost management: billing: sub feederbuildings small building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feederdata center cost management: cost allocation: main incomerdata center cost management: cost allocation: sub feederhealthcare cost management: cost allocation: main incomerhealthcare cost management: cost allocation: sub feederindustry cost management: cost allocation: main incomerindustry cost management: cost allocation: sub feederbuildings small building network management: sub feederbuildings medium building network management: main incomerbuildings medium building network management: sub feederbuildings large building network management: sub feederbuildings multi-site network management: sub feeder, data center network management: sub feeder, healthcare network management: sub feeder, industry network management: sub feederbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing: main incomer, healthcare cost management: billing: main incomer, industry cost management: billing: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building network management: main incomer
    Measurement Voltage
    20-400 V AC 45...65 Hz between phase and neutral, 20-828 V AC 45...65 Hz between phases
    Network Frequency
    50 Hz, 60 Hz
    Type Of Measurement
    current, voltage, frequency, power factor, energy, active and reactive power
    Certificate Agency
    CE conforming to IEC 61010-1cULus conforming to UL 61010-1, BTL
    Connections - Terminals
    voltage circuit screw terminal block4control circuit screw terminal block2current transformer screw terminal block6, RS485 link screw terminal block4digital input screw terminal block8, digital output screw terminal block4Ethernet network RJ45 connector2
    Carbon Footprint Of The Distribution Phase [A4]
    0.24020635933459739, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.04421092926151829
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    7 kg CO2 eq., 7.352530784746031
    Local Publishable Date
    2025-06-18
    Stocking Flag
    N
    Device Type
    Relay, Control & Measurement - measuring, monitoring device
    Traceability
    Yes
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1310016_V2
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    2004
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Product Kit Identifier
    N
    Device Short Name
    PM5563
    Display Type

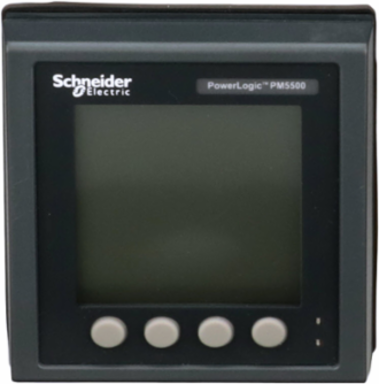

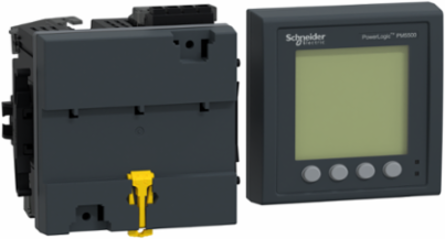

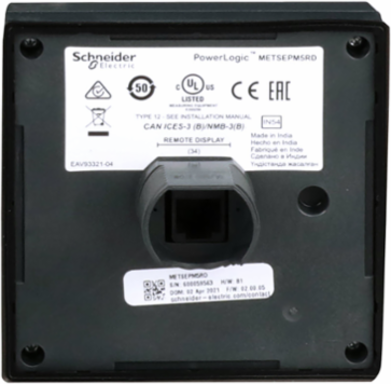

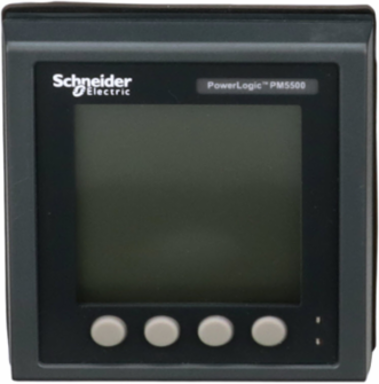

    remote LCD display
    Frequency Measurement Range
    45-65 Hz
    Measurement Current
    50-10000 mA
    Mounting Mode
    clip-on
    Power Quality Analysis
    up to the 63rd harmonic
    Product Name
    PowerLogic PM5000
    Range
    PowerLogic
    Sampling Rate
    128 samples/cycle
    Total Lifecycle Carbon Footprint
    42 kg CO2 eq.
    Pep Code
    ENVPEP1310016_V2
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    15
    Energy Model - Installation [A5]
    Electricity origin
    Energy Model - End Of Life [C1-c4]
    Electricity origin
    Height Nominal
    96 mm
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    9028300000
    Device Applicationgateway, power monitoring, WAGES metering, multi-tariff
    Ethernet ServiceSNTP client, SNMP-Traps
    Measurement Accuracyapparent power +/- 0.5 %frequency +/- 0.05 %active energy +/- 0.2 %reactive energy +/- 1 %, active power +/- 0.2 %voltage +/- 0.1 %power factor +/- 0.005current +/- 0.15 %, reactive power +/- 1 %
    Metering Typemeasured neutral current, calculated ground current
    Number Of Poles1P + N, 3P, 3P + N
    Web Servicesdiagnostic via predefined web pages, real time viewing of data, web server, alarm notification by e-mail
    [Us] Rated Supply Voltage100...300 V DC, 90...528 V AC 45...65 Hz
    Ride-through Time35 ms 120 V AC typical129 ms 230 V AC typical, 50 ms 125 V DC typical
    Carbon Footprint Of The End-of-life Phase [C1 To C4]1.2006731281890972, 1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]33 kg CO2 eq., 33.22408228090151
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionDPIBS
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Compatibility CodePM5563
    Display Resolution128 x 128 pixels
    Energy Efficiency OptimizedFalse
    Information Displayedtariff 8)
    Memory Capacity1.1 MB
    Mounting SupportDIN rail
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typepower meter
    ReturnabilityYes
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Verification Date2025-07-29
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Functional-unit DescriptionPM5560 is a power and energy meter that provides functions such as measuring electrical parameters, monitoring power quality and enabling energy management during the lifetime of 15 years. It helps users analyze and optimize energy usage while ensuring power quality and reliability.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; India, IN
    Energy Model - Use [B6]Electricity origin
    Recyclability Potential In %7
    Width Nominal96 mm
    Package Weight(Lbs)949.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-85 °C, -40-85 °C
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    42.061703482432755
    Circularity Profile
    ENVEOLI1310016_V2
    Eu Rohs Directive
    Compliant
    Operating Altitude
    <= 9842.52 ft (3000 m)<= 9842.52 ft (3000 m)
    Packaging Without Single Use Plastic
    No
    Relative Humidity
    5-95 % 50-50 °C non-condensing
    Pep Verification Date
    2025-07-29
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Take BackNo
    China Rohs RegulationX
    Mercury FreeYes
    Ambient Air Temperature For Operation-25-70 °C-25-70 °C
    Environmental DisclosureENVPEP1310016_V2
    Ip Degree Of ProtectionIP54 display: conforming to IEC 60529IP30 rear: conforming to IEC 60529
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1310016_V2
    Pcr VersionPCR-4-ed4-EN-2021 09 06

    General Attributes

    Product Or Component Type
    power meter

    ETIM

    ETIM 8
    EC002301
    ETIM 9EC002301

    Output Attributes

    Number Of Outputs
    2 digital

    Input Attributes

    Analogue Input Type
    voltage (impedance 5 MOhm)current (impedance <= 0.3 mOhm)
    Number Of Inputs4 digital
