Square D 9421LZL250H43 Operating Mechanism, Type LZ, door mount, 250A mechanism, 3 inch handle, long shaft, for PowerPacT C, H, J and NSF
- MPN: 9421LZL250H43
- UPC: 785901527695
- PPN: SCH-9421LZL250H43
CAD
$526.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

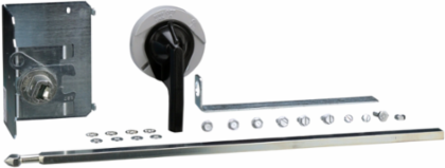

Type L door mounted, variable depth operating mechanisms feature heavy duty and all metal construction. They include trip indication for easy visual identification. These door mount operating mechanism kits include an operating mechanism, an operating handle and an operating shaft. The proper circuit breaker must be purchased separately. The operating mechanism in this kit will work with PowerPacT C, H, J and NSF circuit breakers up to 250 A. Kit contains a 3 inch long painted handle that is rated NEMA 1/3/3R/4. The kit contains a long shaft. Mounting depth for this kit is 5.50 inches to 21.37 inches. Kit is UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Important Information Attributes
- Circuit Breaker Name
- MG-NSF 250 A, PowerPact H or J 250 A
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1848
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Energy Efficiency Optimized
- False
- Product Or Component Type
- Operating Mechanism
- Returnability
- Yes
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 1.361 kg
- Warranty (In Months)
- 18
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product9421L
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Halogene PerformanceHalogen free plastic parts product
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Operating Mechanism
Range Of Product9421L
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
