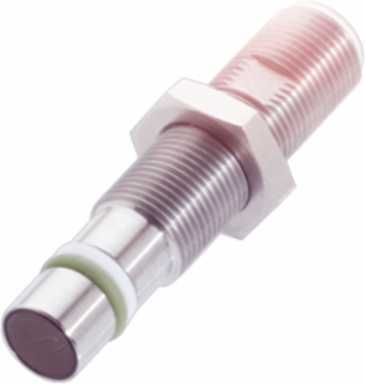

Balluff BHS B249V-PSD15-S04 Pressure-rated inductive sensors BHS B249V-PSD15-S04

Pressure-rated inductive sensors BHS B249V-PSD15-S04
  • MPN: BHS B249V-PSD15-S04
  • PPN: BAL-BHS005Y

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$499.23/ EA

Description

Our pressure-rated inductive sensors withstand a pressure of up to 500 bar. They are, therefore, perfectly suited for position monitoring of your hydraulics, such as for end position verification of hydraulic cylinders or monitoring valve position.

Specifications

Specifications

Dimension
Ø 12 x 56 mm
Installation
for flush mounting
Range
1.5 mm
Switching frequency
400 Hz
Material sensing surface
Ceramic
Operating voltage Ub
10-30 VDC
Pressure rating max.
500 bar
Approval/Conformity
CE, cULus, EAC, WEEE
StyleM12x1
Installation length from contact surface18 mm
Switching outputPNP Normally open (NO)
Housing materialStainless steel
ConnectionConnector, M12x1-Male, 4-pin
Ambient temperature-25-120 °C
IP ratingIP68
