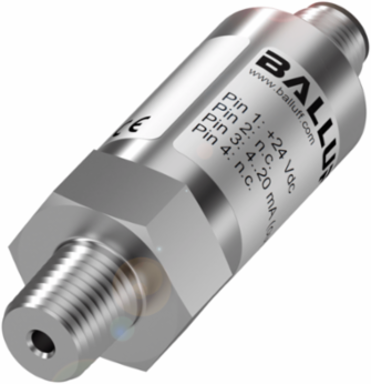

Balluff BSP B002-FV004-A06A1A-S4 Pressure Sensor 0-2 Bar, Stainless Steel, IP67, -40-85 C
- MPN: BSP B002-FV004-A06A1A-S4
- PPN: BAL-BSP00H9
CAD
$273.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure Sensor 0-2 Bar, Stainless Steel, IP67, -40-85 C
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0-2 bar |
|---|---|
| Accuracy | 0.5 % FSO BFSL |
| Ambient Temperature | -40 to 85 C |
| Burst Pressure | 10 bar |
| Current Draw Max | 25 mA |
| Sampling Rate | 1 ms |
| Process Connection Material | Stainless steel (1.4301) |
| Housing Material | Stainless steel (1.4301) |
| Temperature Coefficient | 0.5 % FSO/10K |
| Material | Stainless steel, Nickel-plated brass, Fluoroelastomer, Ceramic Al2O3 |
| Approval/Conformity | CE, cULus, WEEE |
| Analog Output | 4-20 mA |
|---|---|
| Operating Voltage | 8-32 VDC |
| Media Temperature | -40 to 125 C |
| Overload Pressure | 4 bar |
| Load Cycles | 100 million |
| Process Connection | 1/4" NPT |
| Connection | Connector, M12x1-Male, 4-pin |
| IP Rating | IP67 |
| Tightening Torque | 30 Nm |
| Weight | 120 g |
