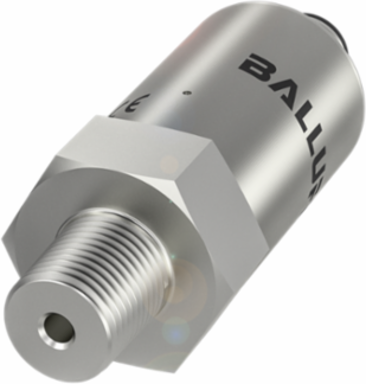

Balluff BSP B050-FV004-A06A1A-S4 Pressure Sensor, 0-50 Bar, M12x1 Connector, IP67, -40 to 125 C
- MPN: BSP B050-FV004-A06A1A-S4
- PPN: BAL-BSP00HF
CAD
$273.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure Sensor, 0-50 Bar, M12x1 Connector, IP67, -40 to 125 C
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0...50 bar |
|---|---|
| Burst Pressure | 150 bar |
| Analog Output | 4 20 mA |
| Temperature Range | -40...125 C |
| Connection | M12x1 Male, 4-pin |
| Process Connection Material | 1.4301 stainless steel |
| Gasket Material | Fluoroelastomer |
| Approval/Conformity | CE, UKCA, cULus, WEEE |
| Overload Pressure | 120 bar |
|---|---|
| Accuracy | 0.5 % FSO BFSL |
| Operating Voltage | 8...32 VDC |
| Ambient Temperature | -25...85 C |
| Process Connection | 1/4" NPT |
| Housing Material | 1.4301 stainless steel |
| IP Rating | IP67 |
| Country of Origin | Germany |
