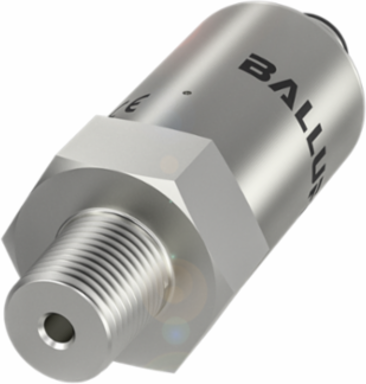

Balluff BSP B050-FV004-D06S1A-S4 Pressure sensors without display - BSP00TC
- MPN: BSP B050-FV004-D06S1A-S4
- PPN: BAL-BSP00TC
CAD
$289.25
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure sensors without display - BSP00TC
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | ±0.5 % FSO BFSL |
| Burst pressure | 150 bar |
| Interface | IO-Link 1.1 |
| Connection | Connector, M12x1-Male, 4-pin |
| Process connection material | 1.4301 stainless steel |
| Housing material | 1.4301 stainless steel |
| Ambient temperature | -25...85 °C |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
| Measuring range | 0...50 bar |
|---|---|
| Overload pressure | 120 bar |
| Operating voltage Ub | 18...30 VDC |
| Switching output | PNP NO/NC |
| Process connection | 1/4" NPT |
| Gasket, material | Fluoroelastomer |
| Media temperature | -40...125 °C |
| IP rating | IP67 |
