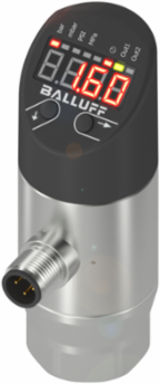

Balluff BSP B020-EV009-P00S2B-S4 Pressure Sensor with Display, 0-20 Bar, IP67, 18-30 VDC
- MPN: BSP B020-EV009-P00S2B-S4
- PPN: BAL-BSP00Y6
CAD
$566.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Pressure Sensor with Display, 0-20 Bar, IP67, 18-30 VDC
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 18...30 VDC
- Burst Pressure
- 70 bar
- Accuracy
- ±0.5% FSO BFSL
- Ambient Temperature
- -40...85 °C
- Connection
- M12x1 4-pin male connector
- Analog Output
- Analog voltage/current selectable 4–20 mA/0–10 V
- Housing Material
- 1.4301 stainless steel, High-density polyethylene (PE)
- IP Rating
- IP67 when threaded in
- Interface
- IO-Link 1.1
Measuring Range0...20 bar
Overload Pressure40 bar
Media Temperature-40...125 °C
Process ConnectionG 1/4" (DIN 3852)
Switching Output2x PNP/NPN NO/NC switchable
Process Connection Material1.4301 stainless steel
Gasket MaterialFluoroelastomer
Approval/ConformityCE; UKCA; cULus; WEEE
Country of OriginGermany
