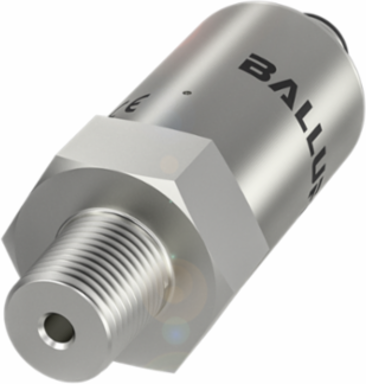

Balluff BSP B250-FV004-A06A1A-S4 Pressure Sensor 0-250 bar, St/Steel, IP67, 4-20 mA Output
- MPN: BSP B250-FV004-A06A1A-S4
- PPN: BAL-BSP00HJ
CAD
$273.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure Sensor 0-250 bar, St/Steel, IP67, 4-20 mA Output
Documentation & Downloads
Specifications
Additional
| Measuring range | 0...250 bar |
|---|---|
| Burst pressure | 750 bar |
| Operating voltage | 8...32 VDC |
| Connection | Connector, M12x1-Male, 4-pin |
| Gasket material | Fluoroelastomer |
| IP rating | IP67 |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
| Media temperature | -40...125 b0C |
| Overload pressure | 400 bar |
|---|---|
| Accuracy | b10.5% FSO BFSL |
| Process connection | 1/4" NPT |
| Housing material | 1.4301 stainless steel |
| Process connection material | 1.4301 stainless steel |
| Analog output | 4-20 mA |
| Ambient temperature | -25...85 b0C |
| Country of Origin | Germany |
