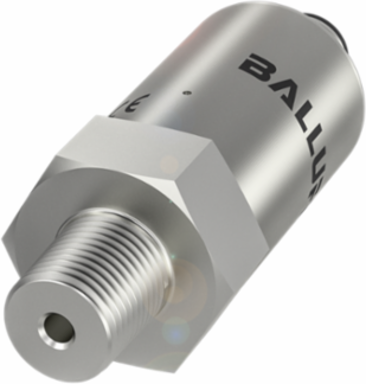

Balluff BSP B010-FV004-A06A1A-S4 Pressure Sensor, 0-10 bar, IP67, 4-20 mA Output, 1/4" NPT
- MPN: BSP B010-FV004-A06A1A-S4
- PPN: BAL-BSP00HC
CAD
$273.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure Sensor, 0-10 bar, IP67, 4-20 mA Output, 1/4" NPT
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 8...32 VDC |
|---|---|
| Overload Pressure | 20 bar |
| Accuracy | 0.5 % FSO BFSL |
| Connection | M12x1 Male, 4-pin connector |
| Gasket Material | Fluoroelastomer |
| Process Connection Material | 1.4301 stainless steel |
| Ambient Temperature | -25...85 C |
| Approval/Conformity | CE, UKCA, cULus, WEEE |
| Measuring Range | 0...10 bar |
|---|---|
| Burst Pressure | 35 bar |
| Output Signal | 4 20 mA |
| Thread Size | 1/4" NPT |
| Housing Material | 1.4301 stainless steel |
| Media Temperature | -40...125 C |
| IP Rating | IP67 |
| Country of Origin | Germany |
