Balluff

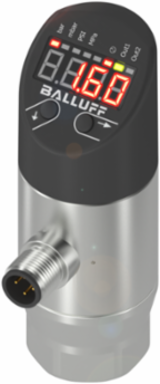

Balluff BSP V010-EV009-P00S2B-S4 Pressure Sensor with Display, Measuring Range -1 to 10 bar, IP67

Pressure Sensor with Display, Measuring Range -1 to 10 bar, IP67
  • MPN: BSP V010-EV009-P00S2B-S4
  • PPN: BAL-BSP00YT

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$572.43/ EA

Specifications

Specifications

Country of Origin
Germany
Accuracy
±0.5 % FSO BFSL
Burst pressure
35 bar
Interface
IO-Link 1.1
Switching output
2x PNP/NPN NO/NC switchable
Process connection
G 1/4" (DIN 3852)
Gasket, material
Fluoroelastomer
Media temperature
-40...125 °C
IP rating
IP67, when threaded in
Measuring range–1...10 bar
Overload pressure20 bar
Operating voltage Ub18...30 VDC
Analog outputAnalog, voltage/Analog, current selectable 4…20 mA/0…10 V
ConnectionConnector, M12x1-Male, 4-pin
Process connection material1.4301 stainless steel
Housing material1.4301 stainless steel; PE, High-density polyethylene
Ambient temperature-40...85 °C
Approval/ConformityCE; UKCA; cULus; WEEE
