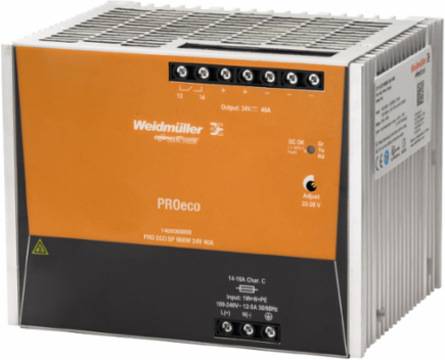

Weidmuller 1469560000 PRO ECO3 960W 24V 40A
Weidmuller 1469560000 PRO ECO3 960W 24V 40A
- MPN: 1469560000
- PPN: WDM-1469560000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$849.36/ EA
Description
Power supply, switch-mode power supply unit, 24 V
Specifications
General Data
- AC failure bridging time @ I
- > 25 ms at 3 x 500 V AC / > 20 ms at 3 x 400 V AC
- Earth leakage current, max.
- 3.5 mA
- Indication
- Green LED (Uoutput > 21.6 V DC), Yellow LED (loutput > 90 % IRated typ. ), red LED (overload, overtemperature, short-circuit, Uoutput < 20.4 V DC)
- Max. perm. air humidity (operational)
- 5 %…95 % RH
- Operating temperature
- -25 °C...70 °C
- Power loss, idling
- 5 W
- Protection against over-heating
- Yes
- Short-circuit protection
- Yes
Degree of efficiency90%
Housing versionMetal, corrosion resistant
MTBF> 500,000 h in accordance with IEC 61709 (SN29500)
Mounting position, installation noticeon terminal rail TS 35
Power factor (approx.)> 0.55 @ 3 x 500 V AC / > 0.65 @ 3 x 400 V AC
Power loss, nominal load95 W
Protection degreeIP20
Signalling
- Contact load (NO contact)
- max. 30 V DC / 1 A
- Relay on/off
- Output voltage >21.6 V DC/ <20.4 V DC, overload
Floating contactYes
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , min.
- 0.5 mm²
- Conductor cross-section, rigid , min.
- 0.5 mm²
- Number of terminals
- 4 for L1/L2/L3/PE
- Tightening torque, min.
- 0.5 Nm
Conductor cross-section, AWG/kcmil , min.26
Conductor cross-section, rigid , max.6 mm²
Connection systemScrew connection
Tightening torque, max.0.6 Nm
Wire connection cross section, flexible (input), max.2.5 mm²
Approvals
- Approvals
- CE, CULUS, cURus, EAC, TUEV
- UL File Number Search
- E258476
ROHSConform
Dimensions And Weights
- Width
- 160 mm
- Height
- 125 mm
- Depth
- 120 mm
- Net weight
- 2,899 g
Width (inches)6.299 inch
Height (inches)4.921 inch
Depth (inches)4.724 inch
Electrical Safety (Applied Standards)
- Electrical machine equipment
- Acc. to EN60204
- Protection against dangerous shock currents
- Acc. to VDE0106-101
- Safety extra-low voltage
- SELV according to EN 60950, PELV according to EN 60204
For use with electronic equipmentAcc. to EN50178 / VDE0160
Protective separation / protection against electrical shockVDE0100-410 / acc. to DIN57100-410
Safety transformers for switch-mode power suppliesAccording to EN 61558-2-16
Rated Data Ul
- Certificate No. (cURus)
- E255651
Emc / Shock / Vibration
- Limiting of mains voltage harmonic currents
- According to EN 61000-3-2
- Vibration resistance IEC 60068-2-6
- 1 g according to EN 50178
- Shock resistance IEC 60068-2-27
- 15 g In all directions
Noise emission in accordance with EN55032Class B
Interference immunity test acc. toEN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips)
Input
- AC current consumption
- 2,15 A @ 3 x 500 V AC / 2,68 A @ 3 x 400 V AC
- Connection system
- Screw connection

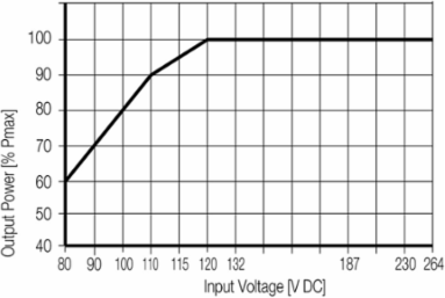

- DC input voltage range
- 450...800 V DC (max. 500 V DC acc. to UL508)
- Input frequency
- 47...63 Hz
- Inrush current
- max. 40 A
- Recommended back-up fuse
- 6 A / DI, safety fuse10 A, Char. B, circuit breaker6...8 A, Char, C, circuit breaker

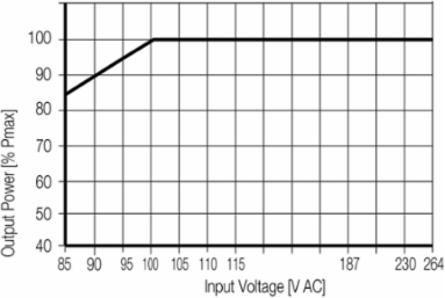

AC input voltage range3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC
DC current consumption1,37 A @ 800 V DC / 2,37 A @ 450 V DC
Frequency range AC47...63 Hz
Input fuse (internal)Yes
Rated input voltage3 x 400...3 x 500 V AC (wide-range input)
Surge protectionVaristor
Classifications
- ETIM 6.0
- EC002540
- eClass 9.0
- 27-04-07-01
- eClass 10.0
- 27-04-07-01
ETIM 7.0EC002540
eClass 9.127-04-07-01
Output
- Capacitive load
- unrestricted
- Continous output current @ U

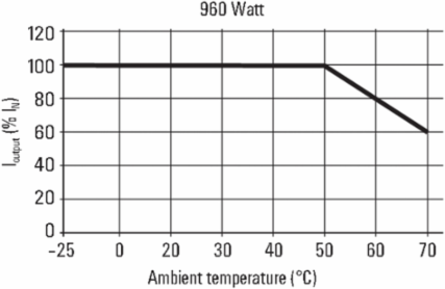

- 40 A @ 50 °C, 24 A @ 70 °C
- Output power
- 960 W
- Overload protection
- Yes
- Protection against inverse voltage
- Yes
- Rated output voltage
- 24 V DC ± 1 %
Connection systemScrew connection
Nominal output current for U40 A @ 50 °C
Output voltage22...28 V (adjustable via potentiometer)
Parallel connection optionyes, max. 3
Ramp-up time≤ 100 ms
Residual ripple, breaking spikes< 50 mVPP @ 24 V DC, IN
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Insulation voltage input / earth
- 2 kV
- Insulation voltage, input/output
- 3 kV
- Protection class
- I, with PE connection
Insulation voltage output / earth0.5 kV
Pollution severity2
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 8
- Conductor cross-section, flexible , max.
- 10 mm²
- Conductor cross-section, rigid , max.
- 16 mm²
- Connection system
- Screw connection
- Tightening torque, max.
- 0.6 Nm
Conductor cross-section, AWG/kcmil , min.22
Conductor cross-section, flexible , min.2.5 mm²
Conductor cross-section, rigid , min.0.5 mm²

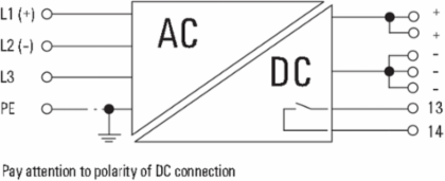

Number of terminals7 (++,---,13,14)
Tightening torque, min.0.5 Nm
Temperatures
- Operating temperature, max.
- 70 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -25 °C...70 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E258476
