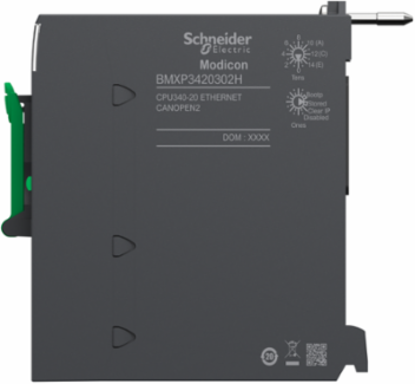

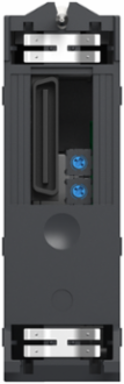

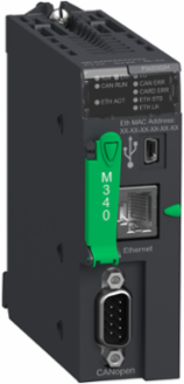

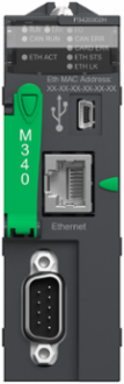

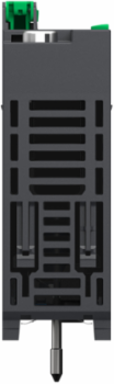

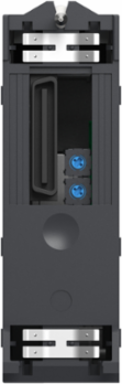

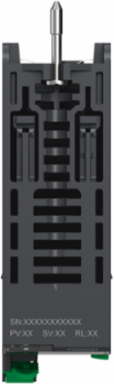

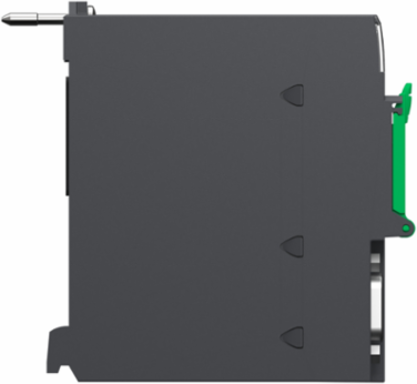

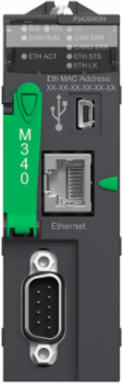

Schneider Electric BMXP3420302H Modicon M340 Processor Module, 1024 Discrete IO, 256 Analog IO, IP20

  • MPN: BMXP3420302H
  • PPN: SCH-BMXP3420302H
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Modicon M340 Processor Module, 1024 Discrete IO, 256 Analog IO, IP20

Documentation & Downloads

Specifications

Key Specifications

Country of OriginBrazil, France, United States

Communications & Management Attributes

Communication ServiceNetwork management (NMT) CANopen, Process Data Object (PDO) CANopen, Service Data Object (SDO) CANopen, special functions (SYNC, EMCY, TIME) CANopenbandwidth management, Ethernet TCP/IP, Data Editor, Ethernet TCP/IP, Modbus TCP messaging, Ethernet TCP/IP, Rack Viewer, Ethernet TCP/IP, SNMP network administrator, Ethernet TCP/IP
Communication Module Processor Capacity2 Ethernet communication module4 AS-Interface module

Physical Attributes

Default Size Of Object Areas1024 %MWi internal words located internal data, 256 %KWi constant words located internal data512 %Mi located internal bits

Complementary Attributes

Maximum Size Of Object Areas32634 %Mi located internal bits, 32464 %MWi internal words, 32760 %KWi constant words
Integrated Connection TypeUSB port 12 Mbit/sCANopen master bus SUB-D 9 2 twisted shielded pairs 20 kbit/s...1 Mbit/sEthernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s

Important Information Attributes

Persona Type IdsEU, OM8, SI
Application Structure1 periodic fast task, no auxiliary task, 1 cyclic/periodic master task, 64 event tasks
ConceptCANopen, Transparent Ready
MarkingCE, UL, CSA, RCM, EAC, China RoHS, WEEE, IEC, ATEX
Number Of Devices Per Segment0-16 205 m CANopen), 0-32 185 m CANopen), 0-64 160 m CANopen)
Transmission Rate1 Mbit/s 0-20 m 0-0.6 m, 125 kbit/s 0-500 m 0-10 m, 20 kbit/s 0-2500 m 0-300 m, 250 kbit/s 0-250 m 0-10 m, 50 kbit/s 0-1000 m 0-120 m, 500 kbit/s 0-100 m 0-10 m, 800 kbit/s 0-40 m 0-6 m
Carbon Footprint Of The Distribution Phase [A4]0.0338682969, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1031042578, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]144 kg CO2 eq., 144.2345832757
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current Consumption135 mA 24 V DC
Motion Controlindependent axis CANopen
Number Of Instructions Per Ms6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic8.1 Kinst/ms 100 % Boolean
Port Ethernet10BASE-T/100BASE-TX
Product Or Component Typeprocessor module
Protective Treatmentconformal coating
ReturnabilityNo
Supplyinternal power supply via rack
System Overhead0.13 ms fast task0.7 ms master task
Pep CodeENVPEP2402021EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %32
Discrete I/O Processor Capacity1024 I/O
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]10732.3125
Customs Code8537109160
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Bus TypeCANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA, CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA, CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA
Environmental Characteristicgas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant Kb/2 IEC 60068-2-52mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3
Memory Descriptionsupplied memory card (BMXRMS008MP) backup of programs, constants, symbols and datainternal RAM 4096 kBinternal RAM 256 kB datainternal RAM 3584 kB program constants and symbols, supplied memory card (BMXRMS008MP) activation of standard web server, class B10
Status Led1 LED (Green) activity on Ethernet network (ETH ACT), 1 LED (Green) integrated machine/installation bus operational (CAN RUN), 1 LED (Green) processor running (RUN), 1 LED (Green) status of Ethernet network (ETH STS), 1 LED (Green) data rate (ETH 100)1 LED (Red) I/O module fault (I/O), 1 LED (Red) integrated machine/installation bus fault (CAN ERR), 1 LED (Red) memory card fault (CARD ERR), 1 LED (Red) processor or system fault (ERR)
Certificate AgencyCE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, ATEX zone 2/22IEC-Ex zone 2/22, UKEX zone 2/22, cCSAus HazLoc Class I Division 2 Group A, cCSAus HazLoc Class I Division 2 Group B, cCSAus HazLoc Class I Division 2 Group C, cCSAus HazLoc Class I Division 2 Group D
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.416828125
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 17.640328125
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402021EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Control Channelsprogrammable loops
Execution Time Per Instruction0.12 µs Boolean0.17 µs double-length words0.25 µs single-length words1.16 µs floating points
Number Of Application Specific Channel36
Number Of Racks4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific Applicationfor severe environments
Range Of ProductModicon M340 automation platform
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint162 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh255
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Analogue I/O Processor Capacity256 I/O
Number Of Server Device(S)63 CANopen
Package Weight(Lbs)259.000 g
Warranty (In Months)18
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]10732.3125

Environment Attributes Main

Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint162.4287120804
Environmental DisclosureENVPEP2402021EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2012/19/EU - WEEE directive, 2014/34/EU - ATEX directive
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2402021EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2402021EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Typeprocessor module
Range Of ProductModicon M340 automation platform

ETIM

ETIM 8EC000236
ETIM 9EC000236

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months
