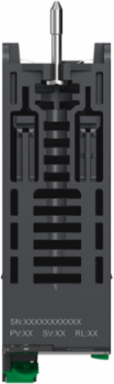

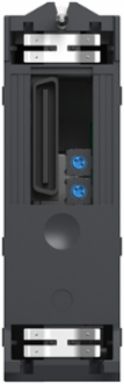

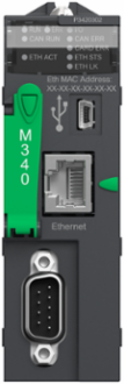

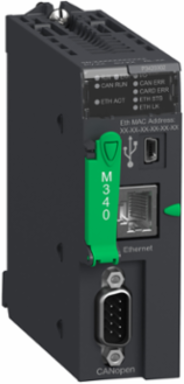

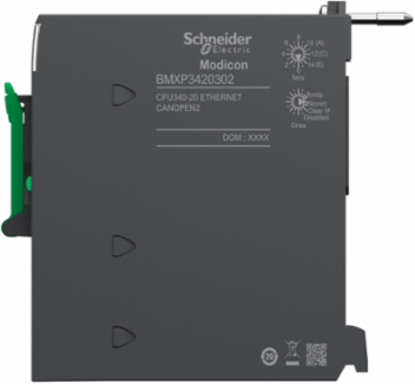

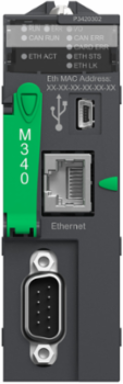

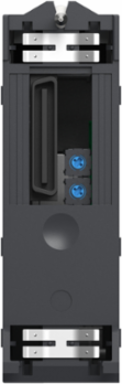

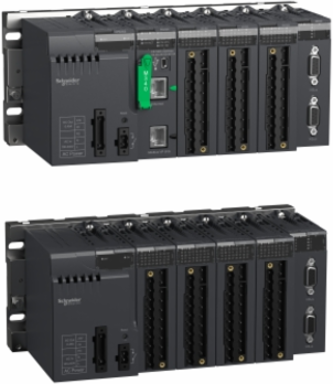

Schneider Electric BMXP3420302 Modicon M340 Processor Module, 1024 Discrete I/O, 256 Analog I/O, Ethernet
Schneider Electric BMXP3420302 Modicon M340 Processor Module, 1024 Discrete I/O, 256 Analog I/O, Ethernet
- MPN: BMXP3420302
- PPN: SCH-BMXP3420302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4503.60/ EA
Description
This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 4 rack configuration, 36 application specific channels, 63 CANopen slaves and 11 slots. It is a processor module with a current consumption of 135mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack, 704 single-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports up to 800kbps 0m to 40m, 0m to 6m transmission rate. It weighs 0.215kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with memory card (BMXRMS008MP) backup of programs, constants, symbols and data, internal RAM 4096kB, internal RAM 256kB data, internal RAM 3584kB program constants and symbols. Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
Specifications
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Protective Treatment
- TC
StandardsEN 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G
Environmental Characteristichazardous location class I division 2
Relative Humidity10-95 % without condensation
Ip Degree Of ProtectionIP20
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Number Of Devices Per Segment
- 0-16 205 m CANopen) || 0-32 185 m CANopen) || 0-64 160 m CANopen)
- Status Led
- 1 LED (green) activity on Ethernet network (ETH ACT) || 1 LED (green) integrated machine/installation bus operational (CAN RUN) || 1 LED (green) processor running (RUN) || 1 LED (green) status of Ethernet network (ETH STS) || 1 LED (red) data rate (ETH 100) || 1 LED (red) I/O module fault (I/O) || 1 LED (red) integrated machine/installation bus fault (CAN ERR) || 1 LED (red) memory card fault (CARD ERR) || 1 LED (red) processor or system fault (ERR) || 1 LED (yellow) activity on Modbus (SER COM)
- Supply
- internal power supply via rack
- Transmission Rate
- 1 Mbit/s 0-20 m 0-0.6 m || 125 kbit/s 0-500 m 0-10 m || 20 kbit/s 0-2500 m 0-300 m || 250 kbit/s 0-250 m 0-10 m || 50 kbit/s 0-1000 m 0-120 m || 500 kbit/s 0-100 m 0-10 m || 800 kbit/s 0-40 m 0-6 m
- Current Consumption
- 135 mA 24 V DC
- Application Structure
- 1 cyclic/periodic master task || 1 periodic fast task || no auxiliary task || 64 event tasks
- Communication Service
- Network management (NMT) CANopen || Process Data Object (PDO) CANopen || Service Data Object (SDO) CANopen || special functions (SYNC, EMCY, TIME) CANopen || bandwidth management, Ethernet TCP/IP || Data Editor, Ethernet TCP/IP || Modbus TCP messaging, Ethernet TCP/IP || Rack Viewer, Ethernet TCP/IP || SNMP network administrator, Ethernet TCP/IP
- Execution Time Per Instruction
- 0.12 µs Boolean || 0.17 µs double-length words || 0.25 µs single-length words || 1.16 µs floating points
- Number Of Instructions Per Ms
- 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic || 8.1 Kinst/ms 100 % Boolean
- Port Ethernet
- 10BASE-T/100BASE-TX
- Memory Description
- supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data || internal RAM 4096 kB || internal RAM 256 kB data || internal RAM 3584 kB program constants and symbols || supplied memory card (BMXRMS008MP) activation of standard web server, class B10
Integrated Connection TypeUSB port 12 Mbit/s || CANopen master bus SUB-D 9 2 twisted shielded pairs 20 kbit/s...1 Mbit/s || Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s
Communication Module Processor Capacity2 Ethernet communication module || 4 AS-Interface module
Default Size Of Object Areas1024 %MWi internal words located internal data || 256 %KWi constant words located internal data || 512 %Mi located internal bits
MarkingCE
Net Weight0.215 kg
System Overhead0.13 ms fast task || 0.7 ms master task
Maximum Size Of Object Areas256 kB unlocated internal data || 32634 %Mi located internal bits
Bus TypeCANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA || CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA || CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA
Motion Controlindependent axis CANopen
Number Of Slave63 CANopen
Control Channelsprogrammable loops
Specifications
- Range Of Product
- Modicon M340 automation platform
- Product Or Component Type
- processor module
- Number Of Slots
- 11
- Number Of Application Specific Channel
- 36
Number Of Racks4
Analogue I/O Processor Capacity256 I/O multi-rack configuration || 66 I/O single-rack configuration
ConceptCANopen || Transparent Ready
Discrete I/O Processor Capacity1024 I/O multi-rack configuration || 704 I/O single-rack configuration
