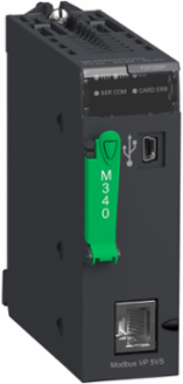

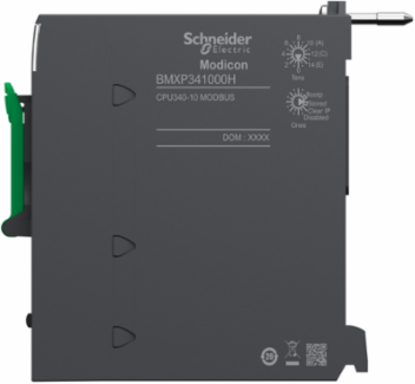

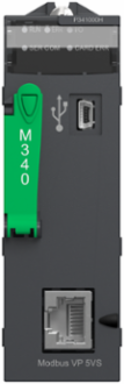

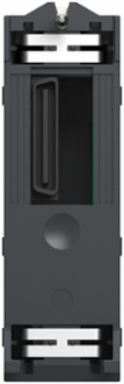

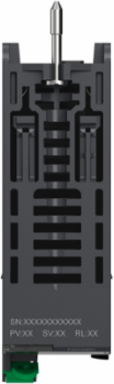

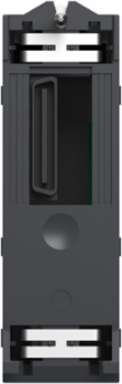

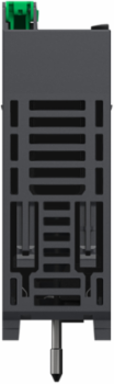

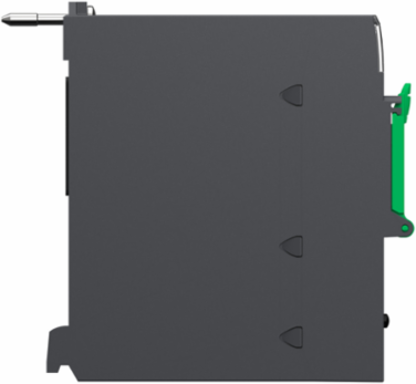

Schneider Electric BMXP341000H Modicon M340 Processor Module, 512 Discrete I/O, 128 Analog I/O, IP20

MPN: BMXP341000H
PPN: SCH-BMXP341000H

$1782.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 2 rack configuration, 20 application specific channels and 11 slots. It is a processor module with a current consumption of 72mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Communication processor module interfaces are 2 Ethernet modules and 2 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 512 multi-rack configuration discrete I/O processor capacity and 128 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United States

Communications & Management Attributes

Communication Module Processor Capacity	2 Ethernet communication module, 2 AS-Interface module

Physical Attributes

Bus Length	0-1000 m serial link isolated Modbus segment0-15 m Modbus point-to-point, 0-10 m serial link non isolated character mode segment, 0-10 m serial link non isolated Modbus segment, 0-1000 m serial link isolated character mode segment, 0-15 m character mode point-to-point

Default Size Of Object Areas	128 %KWi constant words located internal data256 %Mi located internal bits, 512 %MWi internal words located internal data

Complementary Attributes

Integrated Connection Type

non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex, non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplexUSB port 12 Mbit/s

Maximum Tap Links Length

<15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment<15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment

Maximum Size Of Object Areas	16250 %Mi located internal bits32464 %MWi internal words located internal data, 32760 %KWi constant words located internal data

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Application Structure	32 event tasks, 1 cyclic/periodic master task, 1 periodic fast task, no auxiliary task
Environmental Characteristic	gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant Kb/2 IEC 60068-2-52mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3
Monitoring	diagnostic counters Modbus, event counters Modbus
Number Of Devices	2 point-to-point character mode, 2 point-to-point Modbus
Requests	1 K data bytes per request character mode252 data bytes per RTU request Modbus, 504 data bytes per ASCII request Modbus
Certificate Agency	CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, ATEX zone 2/22IEC-Ex zone 2/22, UKEX zone 2/22, cCSAus HazLoc Class I Division 2 Group A, cCSAus HazLoc Class I Division 2 Group B, cCSAus HazLoc Class I Division 2 Group C, cCSAus HazLoc Class I Division 2 Group D
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.4 kg CO2 eq., 0.397515625
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	17 kg CO2 eq., 16.823015625
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2402021EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2438
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Concept	Modbus
Current Consumption	72 mA 24 V DC
Memory Description	internal RAM 2048 kBinternal RAM 128 kB datainternal RAM 1792 kB program constants and symbolssupplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data
Number Of Instructions Per Ms	4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic5.4 Kinst/ms 100 % Boolean
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Specific Application	for severe environments
Range Of Product	Modicon M340 automation platform
Software Version	v5.9.4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	94 kg CO2 eq.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %	32
Discrete I/O Processor Capacity	512 I/O
Package Weight(Lbs)	247.000 g
Warranty (In Months)	18
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	1801.2672
Customs Code	8537109160

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Control Parameter	one LRC on each frame (ASCII) Modbus, one CRC on each frame (RTU) Modbusone LRC on each frame (ASCII) character mode
Marking	CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC, ATEX
Number Of Addresses	0-248 character mode, 0-248 Modbus
Number Of Devices Per Segment	0-32 character mode), 0-32 Modbus)
Status Led	1 LED (Green) processor running (RUN)1 LED (Red) I/O module fault (I/O), 1 LED (Red) memory card fault (CARD ERR), 1 LED (Red) processor or system fault (ERR)1 LED (Yellow) activity on Modbus (SER COM)
Carbon Footprint Of The Distribution Phase [A4]	0.0322991094, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0983272266, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	77 kg CO2 eq., 77.0583272727
Local Publishable Date	2025-07-09
Stocking Flag	Y
Device Type	PLC System - PLC CPU
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Control Channels	programmable loops
Execution Time Per Instruction	0.18 µs Boolean0.26 µs double-length words0.38 µs single-length words1.74 µs floating points
Number Of Application Specific Channel	20
Number Of Racks	2
Product Or Component Type	processor module
Protective Treatment	conformal coating
Returnability	No
Supply	internal power supply via rack
System Overhead	0.2 ms fast task1.05 ms master task
Pep Code	ENVPEP2402021EN
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Analogue I/O Processor Capacity	128 I/O
Nbr. Of Units In Pkg.	1
Take-back	No
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]	10235.0625
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]	10235.0625

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	94.4094848587
Environmental Disclosure	ENVPEP2402021EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Relative Humidity	5-95 % without condensation
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2012/19/EU - WEEE directive, 2014/34/EU - ATEX directive
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2402021EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2402021EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
