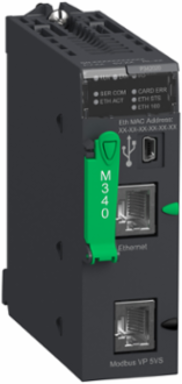

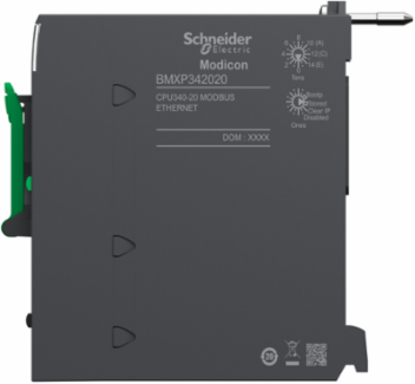

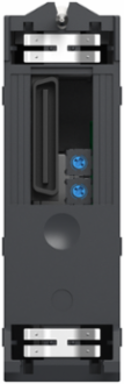

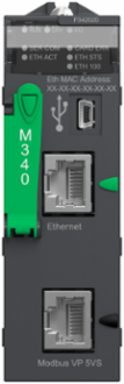

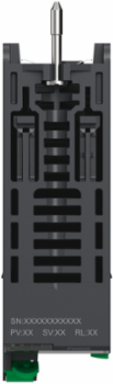

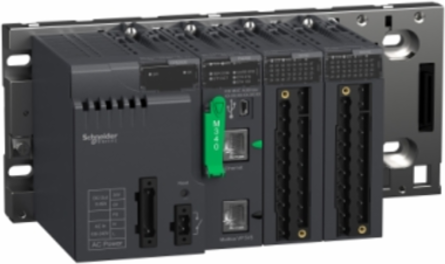

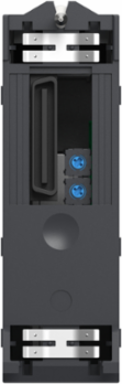

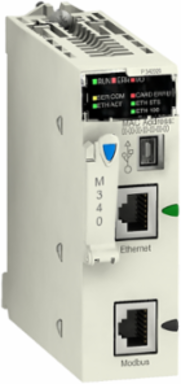

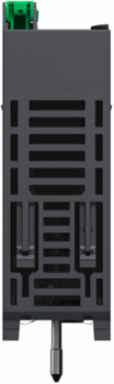

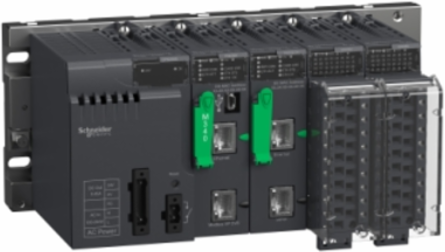

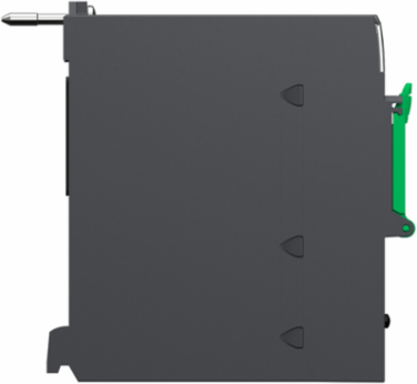

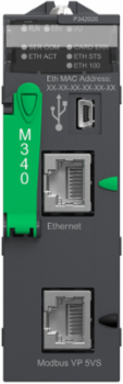

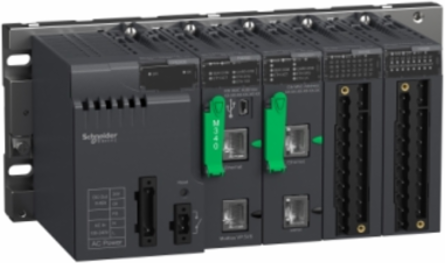

Schneider Electric BMXP342020 Modicon M340 Processor Module, Max 1024 Discrete I/O, 256 Analog I/O, IP20
- MPN: BMXP342020
- PPN: SCH-BMXP342020
CAD
$3931.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon M340 Processor Module, Max 1024 Discrete I/O, 256 Analog I/O, IP20
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Canada, Costa Rica, France, United States |
|---|
Communications & Management Attributes
| Communication Service | bandwidth management, Ethernet TCP/IP, Data Editor, Ethernet TCP/IP, Modbus TCP messaging, Ethernet TCP/IP, Rack Viewer, Ethernet TCP/IP, SNMP network administrator, Ethernet TCP/IP |
|---|
| Communication Module Processor Capacity | 2 Ethernet communication module4 AS-Interface module |
|---|
Physical Attributes
| Bus Length | 0-1000 m serial link isolated Modbus segment0-15 m Modbus point-to-point, 0-10 m serial link non isolated character mode segment, 0-10 m serial link non isolated Modbus segment, 0-1000 m serial link isolated character mode segment, 0-15 m character mode point-to-point |
|---|
| Default Size Of Object Areas | 1024 %MWi internal words located internal data, 256 %KWi constant words located internal data512 %Mi located internal bits |
|---|
Complementary Attributes
| Integrated Connection Type | non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex, non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplexUSB port 12 Mbit/s, Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s |
|---|---|
| Maximum Tap Links Length | <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment<15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment |
| Maximum Size Of Object Areas | 32634 %Mi located internal bits, 32464 %MWi internal words, 32760 %KWi constant words |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Application Structure | 1 cyclic/periodic master task, 1 periodic fast task, no auxiliary task, 64 event tasks |
| Control Parameter | one LRC on each frame (ASCII) Modbus, one CRC on each frame (RTU) Modbusone LRC on each frame (ASCII) character mode |
| Memory Description | supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and datainternal RAM 4096 kBinternal RAM 256 kB datainternal RAM 3584 kB program constants and symbols, supplied memory card (BMXRMS008MP) activation of standard web server, class B10 |
| Number Of Addresses | 0-248 character mode, 0-248 Modbus |
| Number Of Devices Per Segment | 0-32 character mode), 0-32 Modbus) |
| Status Led | 1 LED (Green) activity on Ethernet network (ETH ACT), 1 LED (Green) processor running (RUN), 1 LED (Green) status of Ethernet network (ETH STS), 1 LED (Green) data rate (ETH 100)1 LED (Red) I/O module fault (I/O), 1 LED (Red) memory card fault (CARD ERR), 1 LED (Red) processor or system fault (ERR)1 LED (Yellow) activity on Modbus (SER COM) |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0321683438, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.1 kg CO2 eq., 0.0979291406 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 102 kg CO2 eq., 101.6741818182 |
| Local Publishable Date | 2026-07-27 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC CPU |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Current Consumption | 95 mA 24 V DC |
| Number Of Application Specific Channel | 36 |
| Number Of Racks | 4 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | Yes |
| Supply | internal power supply via rack |
| System Overhead | 0.13 ms fast task0.7 ms master task |
| Pep Code | ENVPEP2402021EN |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS |
| Recyclability Potential In % | 32 |
| Discrete I/O Processor Capacity | 1024 I/O |
| Package Weight(Lbs) | 245.000 g |
| Warranty (In Months) | 18 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 2376.672 |
| Customs Code | 8537109160 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Concept | Transparent Ready, Modbus |
| Marking | CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC |
| Monitoring | diagnostic counters Modbus, event counters Modbus |
| Number Of Devices | 2 point-to-point character mode, 2 point-to-point Modbus |
| Requests | 1 K data bytes per request character mode252 data bytes per RTU request Modbus, 504 data bytes per ASCII request Modbus |
| Certificate Agency | CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, cCSAus HazLoc Class I Division 2 Group A, cCSAus HazLoc Class I Division 2 Group B, cCSAus HazLoc Class I Division 2 Group C, cCSAus HazLoc Class I Division 2 Group D |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.39590625, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 17 kg CO2 eq., 16.75490625 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2402021EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Control Channels | programmable loops |
| Execution Time Per Instruction | 0.12 µs Boolean0.17 µs double-length words0.25 µs single-length words1.16 µs floating points |
| Number Of Instructions Per Ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic8.1 Kinst/ms 100 % Boolean |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Product Or Component Type | processor module |
| Range Of Product | Modicon M340 automation platform |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 119 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201 |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 179.7552 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS |
| Analogue I/O Processor Capacity | 256 I/O |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5] | 10193.625 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] | 10193.625 |
Environment Attributes Main
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2012/19/EU - WEEE directive |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-60 °C |
| Environmental Disclosure | ENVPEP2402021EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 118.9550918026 |
| Circularity Profile | ENVEOLI2402021EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2402021EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | processor module |
|---|
| Range Of Product | Modicon M340 automation platform |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
