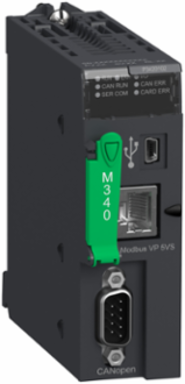

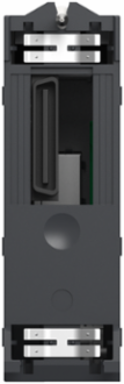

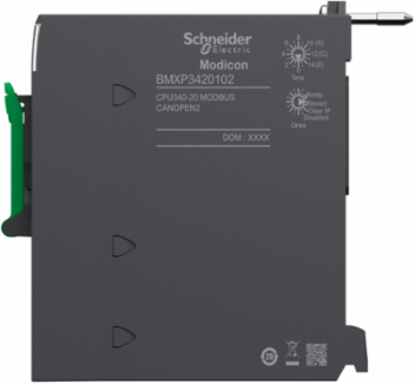

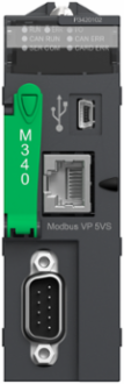

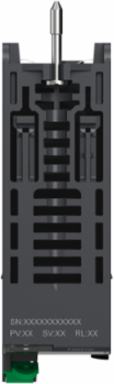

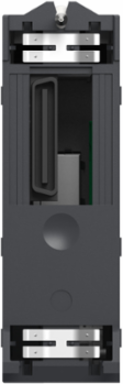

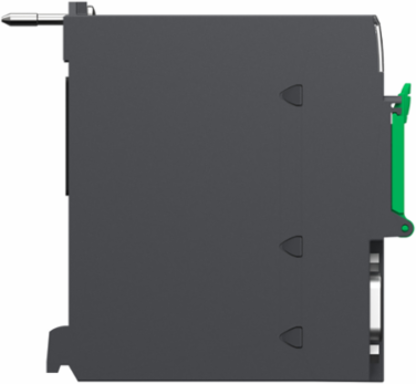

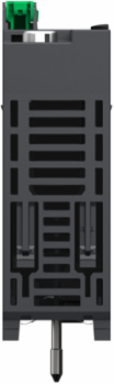

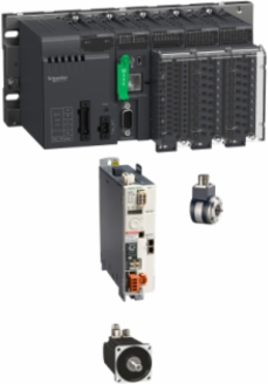

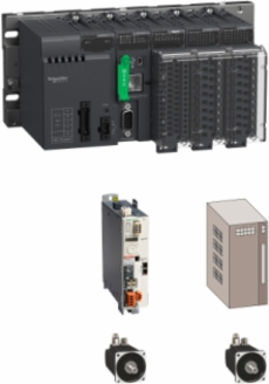

Schneider Electric BMXP3420102 Modicon M340 Processor, 1024 Discrete I/O, 256 Analog I/O, IP20
- MPN: BMXP3420102
- PPN: SCH-BMXP3420102
CAD
$3130.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon M340 Processor, 1024 Discrete I/O, 256 Analog I/O, IP20
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, United States |
|---|
Communications & Management Attributes
| Communication Service | Network management (NMT) CANopen, Process Data Object (PDO) CANopen, Service Data Object (SDO) CANopen, special functions (SYNC, EMCY, TIME) CANopen |
|---|
| Communication Module Processor Capacity | 2 Ethernet communication module4 AS-Interface module |
|---|
Physical Attributes
| Bus Length | 0-1000 m serial link isolated Modbus segment0-15 m Modbus point-to-point, 0-10 m serial link non isolated character mode segment, 0-10 m serial link non isolated Modbus segment, 0-1000 m serial link isolated character mode segment, 0-15 m character mode point-to-point |
|---|
| Default Size Of Object Areas | 1024 %MWi internal words located internal data, 256 %KWi constant words located internal data512 %Mi located internal bits |
|---|
Complementary Attributes
| Integrated Connection Type | non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex, non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplexUSB port 12 Mbit/s, CANopen master bus SUB-D 9 2 twisted shielded pairs 20 kbit/s...1 Mbit/s |
|---|---|
| Maximum Tap Links Length | <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment<15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment |
| Maximum Size Of Object Areas | 32634 %Mi located internal bits, 32464 %MWi internal words, 32760 %KWi constant words |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Application Structure | no auxiliary task, 1 cyclic/periodic master task, 1 periodic fast task, 64 event tasks |
| Concept | Modbus, CANopen |
| Marking | CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC |
| Number Of Addresses | 0-248 character mode, 0-248 Modbus |
| Number Of Devices Per Segment | 0-32 character mode), 0-32 Modbus)0-16 205 m CANopen), 0-32 185 m CANopen), 0-64 160 m CANopen) |
| Status Led | 1 LED (Green) integrated machine/installation bus operational (CAN RUN), 1 LED (Green) processor running (RUN)1 LED (Red) I/O module fault (I/O), 1 LED (Red) integrated machine/installation bus fault (CAN ERR), 1 LED (Red) memory card fault (CARD ERR), 1 LED (Red) processor or system fault (ERR)1 LED (Yellow) activity on Modbus (SER COM) |
| Certificate Agency | CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, cCSAus HazLoc Class I Division 2 Group A, cCSAus HazLoc Class I Division 2 Group B, cCSAus HazLoc Class I Division 2 Group C, cCSAus HazLoc Class I Division 2 Group D |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4 kg CO2 eq., 0.399125 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 17 kg CO2 eq., 16.891125 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2402021EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Control Channels | programmable loops |
| Execution Time Per Instruction | 0.12 µs Boolean0.17 µs double-length words0.25 µs single-length words1.16 µs floating points |
| Motion Control | independent axis CANopen |
| Number Of Instructions Per Ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic8.1 Kinst/ms 100 % Boolean |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | No |
| Supply | internal power supply via rack |
| System Overhead | 0.13 ms fast task0.7 ms master task |
| Pep Code | ENVPEP2402021EN |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS |
| Recyclability Potential In % | 32 |
| Discrete I/O Processor Capacity | 1024 I/O |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5] | 10276.5 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 2251.584 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -92498.1875 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 10813.1875 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 63063.6875 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Bus Type | CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA, CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA, CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA |
| Control Parameter | one LRC on each frame (ASCII) Modbus, one CRC on each frame (RTU) Modbusone LRC on each frame (ASCII) character mode |
| Monitoring | diagnostic counters Modbus, event counters Modbus |
| Number Of Devices | 2 point-to-point character mode, 2 point-to-point Modbus |
| Requests | 1 K data bytes per request character mode252 data bytes per RTU request Modbus, 504 data bytes per ASCII request Modbus |
| Transmission Rate | 1 Mbit/s 0-20 m 0-0.6 m, 125 kbit/s 0-500 m 0-10 m, 20 kbit/s 0-2500 m 0-300 m, 250 kbit/s 0-250 m 0-10 m, 50 kbit/s 0-1000 m 0-120 m, 500 kbit/s 0-100 m 0-10 m, 800 kbit/s 0-40 m 0-6 m |
| Carbon Footprint Of The Distribution Phase [A4] | 0.032429875, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.09872531250000001, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 96 kg CO2 eq., 96.3229090909 |
| Local Publishable Date | 2024-02-10 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC CPU |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Current Consumption | 90 mA 24 V DC |
| Memory Description | supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and datainternal RAM 4096 kBinternal RAM 256 kB datainternal RAM 3584 kB program constants and symbols |
| Number Of Application Specific Channel | 36 |
| Number Of Racks | 4 |
| Product Or Component Type | processor module |
| Range Of Product | Modicon M340 automation platform |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 114 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201 |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 170.2944 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS |
| Analogue I/O Processor Capacity | 256 I/O |
| Number Of Server Device(S) | 63 CANopen |
| Package Weight(Lbs) | 249.000 g |
| Warranty (In Months) | 18 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] | -92498.1875 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] | 10276.5 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 10813.1875 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -9799.875 |
| Customs Code | 8537109160 |
